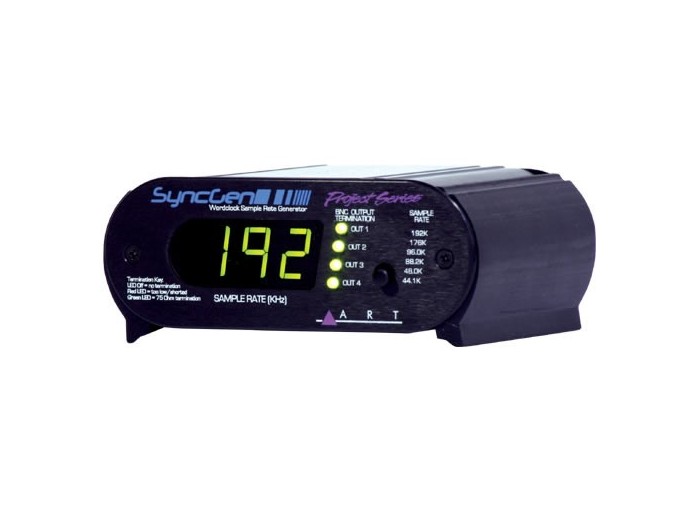

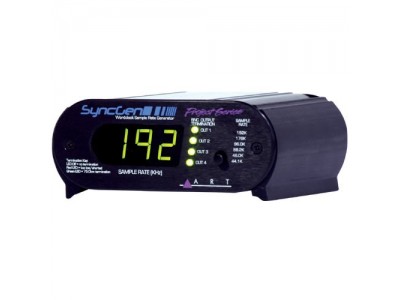

The ART Sync Gen is a simple to use and inexpensive way to improve the performance of your digital recording equipment while eliminating seemingly random pops and clicks that result from synchronization timing errors in recording systems.
A word-clock generator will centralize all of the timing of various pieces of digital equipment, reducing accumulated timing errors between the individual units that make up a digital recording chain. Designed for maximum versatility, the ART SyncGen will provide stable, sample accurate time based reference and can connect to digital audio equipment with either BNC word-clock or coaxial S/PDIF inputs.
The ART SyncGen also acts as a system tester by confirming status of BNC word-clock cables and terminations and can verify which pieces of gear are internally terminated. The ART SyncGen will also test proper cable connections to ensure total system accuracy.
Stable & Accurate Time-Base Reference
44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, 192 KHz Sample Rates
Four High-Current 5 Volt BNC Word-Clock Outputs
Two "Zero Bit Digital Black" S/PDIF Outputs On Coaxial RCA Connectors
LED Indicators Monitor Termination And Operating Status of BNC Outputs
Large, Easy To Read Digital Sample Rate Readout
Easy Sample Rate Selection with Memory Recall After Power Down Cycle
Set Of 75 Ohm BNC Terminators And BNC "T" Adaptors Included
Easy To Read User / Application Manual IncludedBNC World-Clock Outputs > 5 Vpp Into 75 Ohms, <5.75 Vpp Unterminated, 40 Ma Rms Maximum Output
S/Pdif Outputs > 0.5 Vpp Into 75 Ohms, <1 Vpp Unterminated, All Audio Bits Set To Zero "Digital Black"
Available Sample Rates 44.1 Khz, 48 Khz, 88.2 Khz, 96 Khz, 176 Khz, 192 Khz
Timebased Accuracy ± 10 Ppm @ 0°C To 50°C
Jitter <100 Psec Rms
External Power Supply 8.5 - 14 Vdc Or 7 - 12 Vac @ 500 Ma
Dimensions 1.87"H x 4.61"W x 4.27"D (47.5mm x 117mm x 108mm)
Weight 1.89lbs (0.86 kg) with power supply and packaging
