Naziv proizvoda

SM PRO Audio M Patch 2

SM PRO Audio M Patch 2
[klikni na sliku za uvećan prikaz]
  • SM PRO Audio M Patch 2
  • SM PRO Audio M Patch 2
Naša cena:
13.804,00 DIN

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

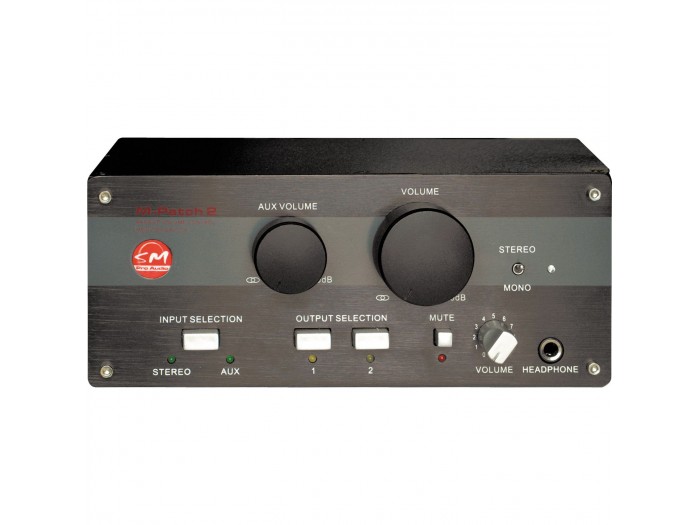

The M-Patch 2 is a compact desktop/rack-mountable sized passive volume attenuator and patch control device. Building on the success of the original M-Patch, the new M-Patch 2 is a feature packed passive problem solver for nearly all production environments. A great way to passively attenuate stereo signals from soundcards, CD players, pre-amps, and mixers, the M-Patch 2 front panel rotary controls allow precise level adjustments for two input sources. Featuring balanced combo XLR/TRS input jacks and XLR outputs, RCA & 3.5mm jack inputs, mono/stereo summing switch, Mute switch, A/B output pairs, and a built in stereo headphone amplifier, the M-Patch 2 has all bases covered.

No more bit loss! One of the benefits of passive volume attenuation is that you no longer have to control volumes with your software master volume fader. Reducing audio levels from software only reduces your bit depth. It is much more appropriate to keep your software masters at unity and passively attenuate the audio to your active monitors.

No active circuitry, buffers, transistors, batteries, or power supply of any kind can interfere with the main passive output of the M-Patch 2. It simply delivers attenuated signal. That's it.. pure, simple transparent.

The M-Patch 2 is a true problem solver. It will work seamlessly within your system, is very transparent and silent. You will now be able to keep your bit levels up in your system, eliminate using your mixer, and keep all volumes at an acceptable level. This is a very handy tool for a wide variety of applications.

You can use M-Patch 2 anywhere you want to trim the amount of gain; ie, reduce the volume of analog audio signals. For example, you could use one to trim the output of a microphone pre-amplifier. With its high-quality potentiometer, the M-Patch 2 passes signal more accurately, and sounds better than most built-in volume controls. Another use might be to trim the levels of a 5.1 or greater multi-channel monitor system -- either one pair of channels, or two, or all of them. You can also use a M-Patch 2 to trim the output level of a Digital to Analog Converter like those found in high end pre-amplifiers. Or as a local volume control for distributed audio systems.


Passive volume attenuation control

A & B output destination selector

Independent Main & Aux controls

Built in headphone amp

A/B multiple outputs

3.5mm input for soundcard matching

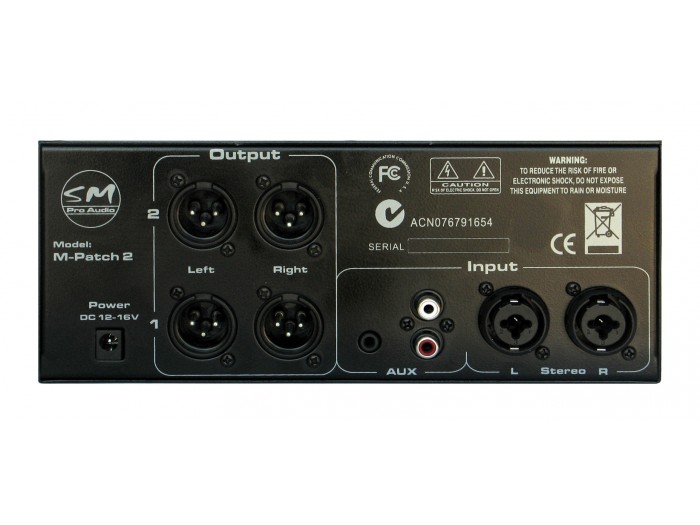

Balanced and unbalanced input (XLR, RCA)

DC 12 V

Stereo/Mono summing switch

Size: 86 mm x 220 mm x 120 mm

Mute function switch

Weight. 1,0 kg

2 x stereo input sources

Housing: Metal

2 x stereo output

Rack Mount Adaptors Included
