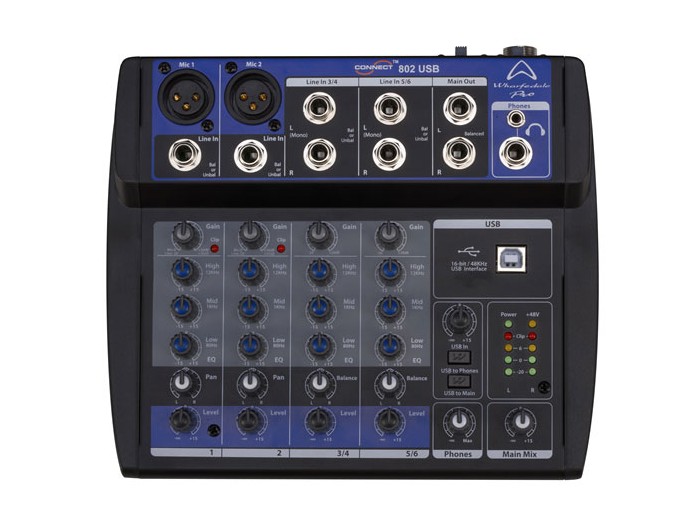

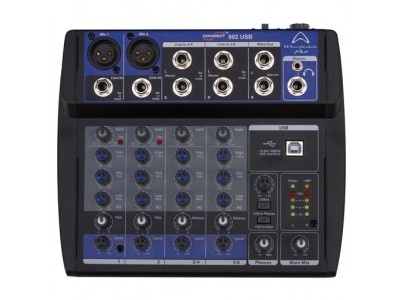

Wharfedale Connect-802 USB

 The Wharfedale Connect 802 USB Mixer is a high quality micro-mixer suitable for a wide range of applications.

The Connect 802 features an intuitive, ergonomically designed user interface that is excellent for beginners and professionals alike. Comprehensive connectivity ensures that a Connect 802 will fit into any situation you need.

Professional big mixer features such as Phantom powered, balanced XLR microphone inputs give you full functionality and great sound in an ultra compact and cost effective package that is ideal for live sound, home studio recording and fixed installations. The Microphone pre-amplifiers use the same high quality components and construction methods that are employed in the recently released SL Series Mixers.

• Switchable Global +48V Phantom Power
• Clip LED's on Mic/Line Channels
• 2x Balanced XLR Mic Input
• Pan/Balance Controls On All Channels
• 2x Stereo Channels with Balanced/Unbalanced 1/4" TRS Jacks
• Separate Main Mix and Phones Outputs with Level Controls
• Stereo 4 Segment LED Meters
• Stereo 1/8" and 1/4" Headphone Outputs
• CLIP INDICATOR Turns on at approx +16dBu
• FREQUENCY RESPONSE 20Hz-20kHz ±1dB
• MAXIMUM HEADPHONE OUTPUT LEVEL >150mw @ 32 ohms
• INPUT CHANNEL EQ High (±15dB) 12kHz Shelving/ Low (±15dB) 80Hz Shelving
• THD <0.0025% @ +14dBu
• DIMENSIONS (H X W X D) 311mm x 77mm x 226 mm/ (12.24" x 3.03" x 8.90")/ 315mm x 267mm x 230 mm/ (12.40" x 10.51" x 9.06")
• WEIGHT: (KG/LB) 1.88kg / 0.92kg (4.14lbs / 2.03lbs)
