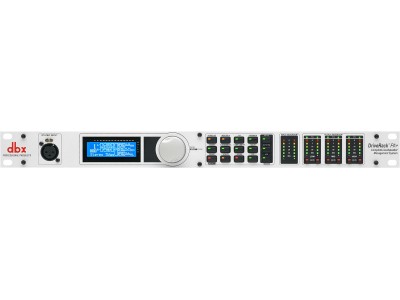

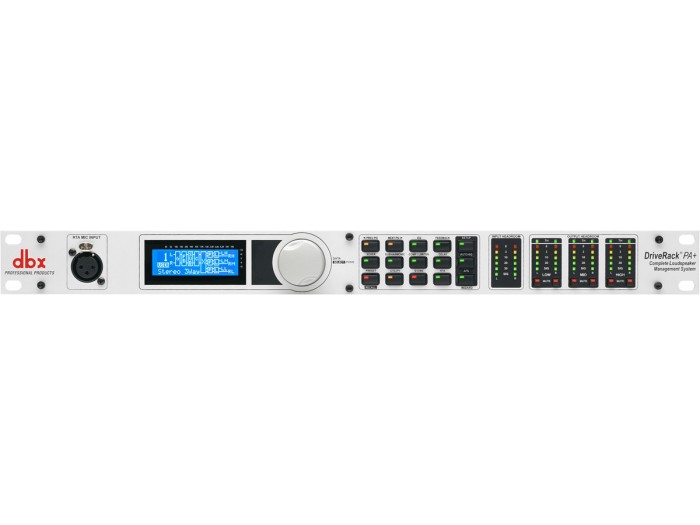

dbx PA+ 2x6 PA Management Processor

[klikni na sliku za uvećan prikaz]

Podeli

Ovaj proizvod trenutno nije dostupan.

pogledaj ostale dbx proizvode

Odštampaj stranicu

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

The best just got even better! The DriveRack PA, far and away the world's most popular loud speaker management system has now become the DriveRack PA+; the best has indeed gotten better. Showcasing all the features that users around the world have come to expect, including easy setup, rock-solid reliability and unparalleled sound quality, the new version has gone to great lengths to earn its "plus." With more settings, more control and enhanced circuitry, the sound you seek is right at your fingertips.

Although the DriveRack PA+ is loaded with functions and features, it is easy to set-up and use. The dbx exclusive Set Up Wizards walk you through system set up with easy to follow step-by-step instructions. Just pick your speakers and amps from the built-in list on the PA+ and then let the Auto Level Wizard™ fine tune the level settings of each speaker. You can then let the Auto EQ® Wizard help you further optimize your sound. Finish up by using the AFS Wizard, which automatically sets filters to eliminate any feedback during performances. Within minutes, your system will sound like it was tuned by a pro! No experience required. Get the most out of your PA with the DriveRack PA+, the worldwide standard in loudspeaker management.

Setup Wizard Steps Through Speaker and Amp Selection and Levels
Auto EQ™ Wizard with 28-Band RTA Tunes Your System For The Venue
AFS™ Wizard Helps Eliminate Feedback
Stereo Feedback Elimination with 12 feedback notch filters
dbx 120A Sub-harmonic Synthesizer
Classic dbx Input Compression
JBL® Speaker and Crown® Power Amp Tunings included
USB Firmware and Speaker Tunings Field Updatable With Harman HiQnet™ System
Architect
Full time RTA function
Front-Panel Output Mutes
Pink Noise Generator (used with Auto EQ and Auto Level Wizards)
Linked Stereo DSP Processing for ease of use
24-Bit ADC/24-Bit DAC, >113 dB Dynamic Range
2-Channel XLR Input and 6-Channel XLR Output
2x3, 2x4, 2x5, 2x6 Crossover Configurations
Dual 28-band Graphic EQ- Linked or Dual Mono
Stereo Multi-band Parametric EQ
Stereo Output Limiters
Output Alignment Delay
Power on/off Mute Circuitry
Front-panel RTA-M XLR input with phantom power
25 User Programs/25 Factory Programs
Full Graphic LCD Display
Front Panel Input and Output Meters

Karakteristike:

Analog Inputs

Number of Inputs:(2) Line inputs. (1) RTA Mic input Connectors:(2) Female XLR line inputs, XLR RTA Mic input Type:Electronically balanced/RF filtered Impedance:> 40k ohm Maximum Input Level: >+20dBu CMRR:>45dB RTA Mic Phantom Voltage+15VDC RTA Mic EIN:< -117dBu, 22Hz-22kHz, 150

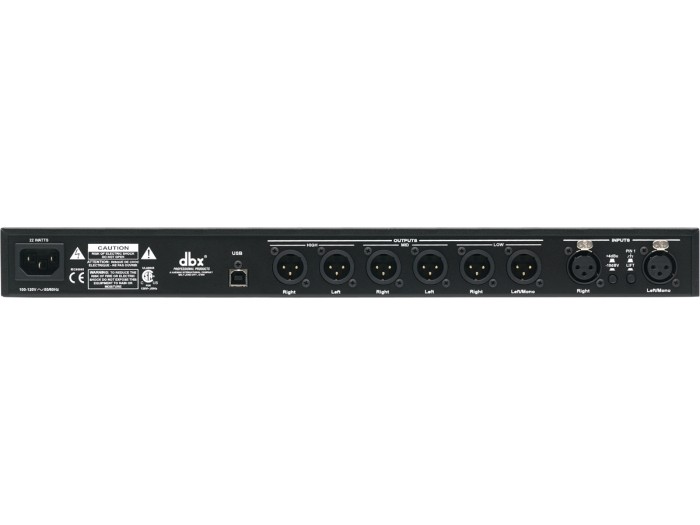

Analog Outputs

Number of Outputs: (6) Line Outputs Connectors: Male XLR Type:Electronically balanced, RF filtered Impedance:120 ohms Max Output Level:+20dBu CMRR:>45dB Alignment Delay:10ms per channel (60ms total)

A/D Performance

Type: dbx Type IV conversion systemDynamic Range: 110 dB A-weighted, >107 dB weighted Type IV dynamic range:123 dB with transient material, A-weighted, 22kHz BW
121 dB with transient material, unweighted, 22kHz BW
115 dB typical with program material, A-weighted, 22kHz BW Sample Rate:48kHz

D/A PERFORMANCE

Dynamic Range: 112 dB A-weighted, 110 dB unweighted Sample Rate: 48kHz

SYSTEM PERFORMANCE

Dynamic Range: 110 dB A-weighted, >107 dB weighted THD+N:0.004% typical at +4 dBu, 1kHz 0 dB input gain Frequency Response:20Hz - 20kHz, +/-0.5dB Interchannel Crosstalk:< -110 dB, -120dB typical Crosstalk input to output:<-100 dB
