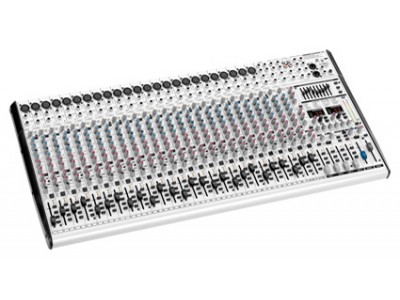

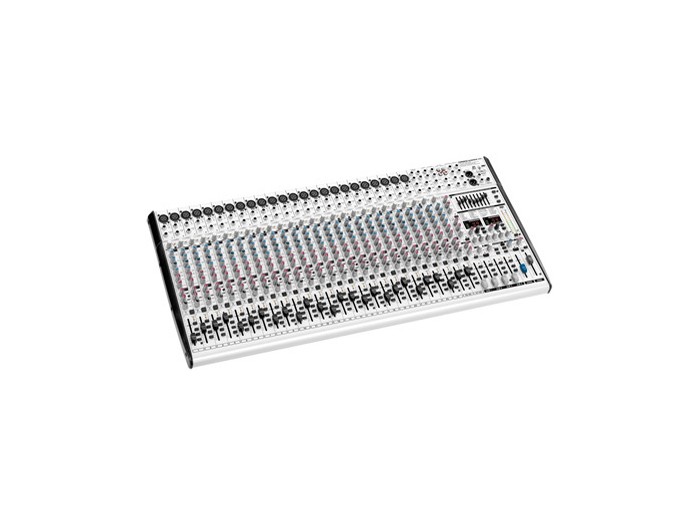

The revolutionary new SL Series mixing consoles for the first time unite studio perfection with live performance in one single mixer. They are loaded with top-notch, no-compromise technology like studio-grade acoustically “Invisible” IMP Mic Preamps, ULN (Ultra Low-Noise) circuitry, dual 24-bit FX processors of VIRTUALIZER fame and the amazing new FBQ Feedback Detection System.
For the studio there are two high-end 24-bit FX processors, incredible connectivity, an integrated talkback section plus comprehensive solo-in-place and pre-fader-listen functions. For live performances, they feature an ultra-musical 9-band stereo graphic EQ with the amazing FBQ Feedback Detection System and even a mono subwoofer output with a sweepable low pass filter. Another nice touch for live gigs: all mic channels can be muted during breaks by pressing a single button, so music can be played via CD/tape inputs without the mics picking up any sounds.
Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio
24 new state-of-the-art, studio-grade IMP “Invisible” Mic Preamps with:
130 dB dynamic range for 24-bit, 192 kHz sampling rate inputs
Ultra-wide 60 dB gain range
Lowest possible distortion 0.0007% (20 Hz - 20 kHz)
2 independent 24-bit digital stereo FX processors with 99 great-sounding VIRTUALIZER presets including reverb, delay, chorus, compressor, tube distortion and more
High precision 9-band stereo graphic EQ allows precise frequency correction of monitor or main mixes
Revolutionary, patent-pending FBQ Feedback Detection System instantly reveals critical frequencies
2 fully featured stereo input channels with 4-band EQ plus 2 additional stereo input channels with level and pre-fader aux facilities
Effective, extremely musical 3-band EQ plus switchable low cut filter on all mono channels
Inserts on each mono channel and main mix for flexible connection of outboard equipment
4 subgroups and additional mono output with sweepable low pass filter for subwoofer application
4 aux sends per channel: 2 switchable pre/post fader, 2 post fader (for internal FX and/or as external send)
Clip indication and gain level set LEDs plus mute switches for each channel allow fast and accurate level setting
Balanced main mix outputs with gold-plated XLR and ¼” TRS connectors, headphone/control room output and stereo tape outputs
Solo-In-Place and Pre-Fader-Listen functions plus full-featured talkback section
Standby switch mutes all channels during breaks while background music is provided via CD/tape inputs
State-of-the-art 4580 operational amplifiers provide lowest noise and distortion—better than 4560 op amps
Long-wearing logarithmic-taper faders and sealed rotary controls
Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus lowest possible power consumption
Extremely rugged construction ensures long life even under most demanding conditions
Conceived and designed by BEHRINGER Germany
