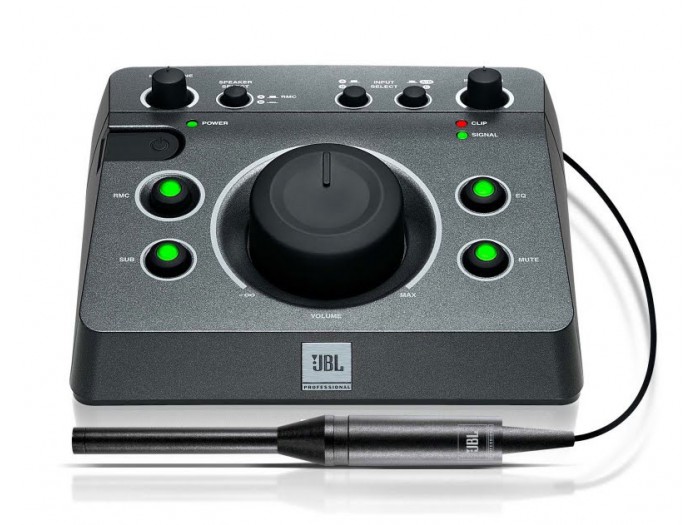

JBL MSC1 MONITOR SYSTEM CONTROLLER

JBL MSC1 MONITOR SYSTEM CONTROLLER
[klikni na sliku za uvećan prikaz]
Ovaj proizvod trenutno nije dostupan.

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

Command all control room monitoring functions right from your mix position, with the MSC1 Monitor System Controller. In a convenient desk-top form-factor, the MSC1 provides essential “monitor strip” features found in large mixing consoles. Since the acoustics of your room can play a big part in what you hear, the MSC1 includes JBL's highly acclaimed RMC Room Mode Correction Technology. The end-result is a calibrated reference environment in which your speakers work in harmony with your room to take the guesswork out of mixing. With RMC you can tune your monitor system for greater clarity at the mix position. With the MSC1, you’re clearly in control. Includes Calibration Microphone and MSC1 Control Center Software.*

(*Control Center Software is compatible with XP and Vista 32-bit and 64-bit operating systems. Use on a Macintosh computer requires Macintosh Version MSC1 Control Center, and Macintosh OS.


In the quest to deliver better mixes in any room, JBL developed RMC technology for it’s acclaimed LSR Series studio monitors. But we didn’t stop there. We designed the MSC1 with next generation RMC to work with any studio monitor system in any room. No matter what speaker system you own, you can have a truly calibated environment fine-tuned to give you your best mixes.

Karakteristike:

  • Master Volume Control
  • A/B Speaker Select
  • A/B/C input Source Select
  • Subwoofer Output with Level Control and
    Selectable Cross Over Frequencies
  • Adjustable Low Frequency and
    High Frequency Speaker EQ
  • Headphone Output with Volume Control
  • Monitor Mute Control
  • RMC On/Bypass Control
  • Adjustable input gain with Signal Present and
    Clip indicator
  • Can be used with any studio monitor system



S/N, Dynamic Range   :   110 dB typical
A-weighted
20 Hz - 20 kHz
Frequency Response   :   +0/-O.5 dB, 20 Hz - 20 kHz
THD+N   :   < 0.04% A/D/A, 20 Hz - 20 kHz
A/D, DA Converters   :   24 Bit
Internal Processing   :   48 Bit, 48 kHz
Maximum Input Level   :   +24 dBU 6.5mm (1/4" TRS Inputs)
+4 dBu phono (RCA Inputs)
Maximum Output Before Clipping   :   +17 dBu
Power Requirements   :   12 VDC, 0.5A
Dimensions W x D x H   :   198 x 165 x 83 mm
(7.8 x 6.5 x 3.25 in)
Inputs A, B / C   :   4 Balanced 1/4" TRS
2 Unbalanced RCA
Outputs A, B and Subwoofer   :   5 Balanced 1/4" TRS
Headphone   :   Stereo 1/4"
RMC Mic IN / OUT   :   1/8" TRS
Computer Interface   :   USB 2.0
LF EQ Frequency   :   20 Hz to 1.1 kHz Shelf
32 options
LF EQ Gain   :   +/- 3 dB in .25 dB increments
HF EQ Frequency   :   2.5 kHz to 17 kHz Shelf
28 options
HF EQ Gain   :   +/- 3 dB in .25 dB increments
Level   :   +/- 10 dB from nominal
in .5 dB increments
Selectable Crossover Frequencies   :   60 Hz, 80 Hz, 120 Hz
Polarity   :   0 degrees / 180 degrees
