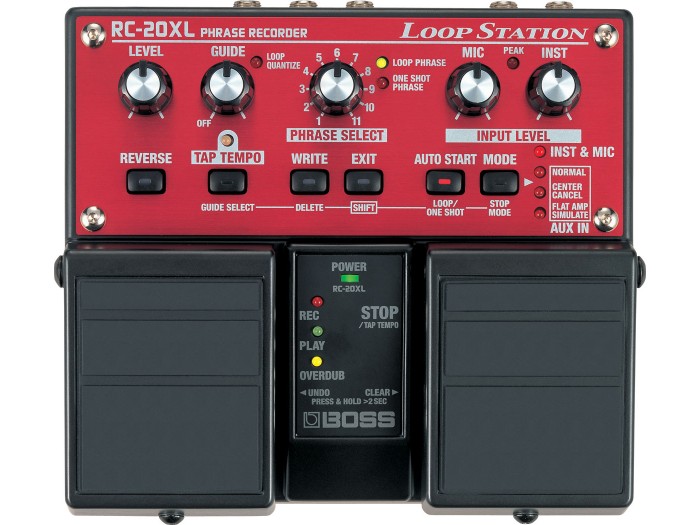

Boss RC-20 XL Phrase Recorder

Whether for use onstage or at home, the new RC-20XL allows musicians to create multi-layered performances in real time. Loops and riffs can be stacked repeatedly until the 16 minutes (!) of ample recording space is full. Never before has it been so easy to create a massive “one-person band” sound in real time.


• Super long recording time: up to 16 minutes!
• Save up to 11 loops at a time
• Undo function makes it easy to create perfect loops
• Built-in auto quantize for simple and accurate loop timing
• Change loop tempo without changing pitch
• Footswitchable loop select (with optional FS-5U/FS-6)

Nominal Input Level

Inst: -20 dBu (variable)
Mic: -40 dBu (variable)
Aux In:-10 dBu

Input Impedance

Inst: 1 M ohms
Mic: 1 k ohms
Aux In: 47 k ohms

Nominal Output Level

Output: -20 dBu

Output Impedance

1 k ohms

Recommended Load Impedance

10 k ohms or greater

Internal Memory

Recording time: 16 min.(max.)

Maximum number of saved phrases

11 phrases (max.)

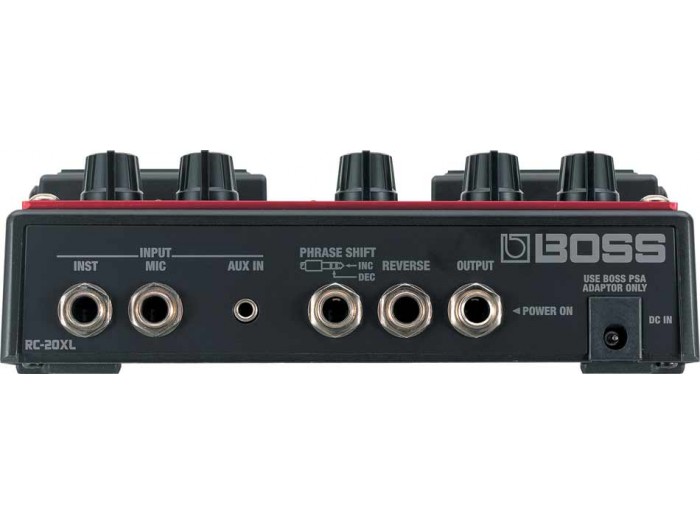

Connectors

Inst jack (1/4 inch phone type), Mic jack (1/4 inch phone type), Aux In jack (Stereo miniature phone type), Phrase Shift jack (1/4 inch TRS phone type), Reverse jack (1/4 inch phone type), Output jack (1/4 inch phone type), AC Adaptor jack

Power Supply

DC 9V: Dry battery (R6/LR6 (AA) type) x 6, AC Adaptor (PSA-series)

Current Draw

120 mA (9 V max.)

Accessories

Owner’s Manual, Dry battery (AA type) x 6, Sound Library for RC-20XL (Sample Phrase CD)

Options

AC Adaptor (PSA-series), Foot Switch (FS-5U)

Size and Weight ( incl. batteries )

Width

173 mm

6-13/16 inches

Depth

158 mm

6-1/4 inches

Height

57 mm

2-1/4 inches

Weight

1.2 kg

2 lbs. 11 oz.
