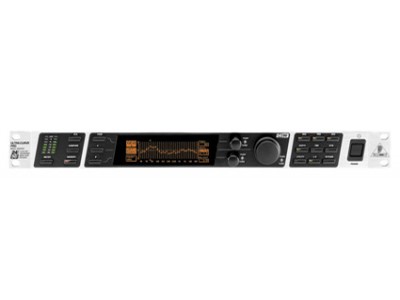

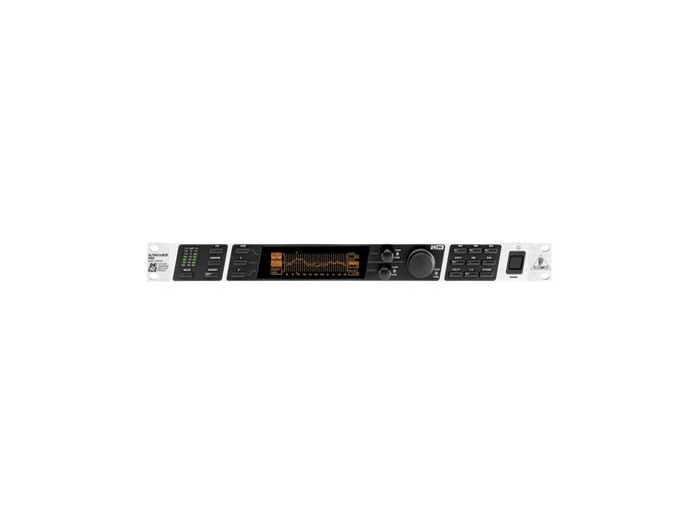

The DEQ2496 is a highprecision digital 24-bit/ 96 kHz EQ/RTA mastering processor, ideal for sophisticated live sound trouble-shooting or audiophile mastering. Whether you’re putting the finishing touches on recorded material or creating an optimal live sound for a multi-way PA, the DEQ2496 is built to provide meticulous control.
Equalization? Dynamics? Feedback correction? Yes, yes, yes. You can have it all with the DEQ2496. Automatic FFT analysis with Auto EQ? We added that too.
The DEQ2496 is a whole rack of flexible equalization, dynamics and time correction functions designed to fix problems and generally optimize sound quality.
Ultra high-resolution processor for all EQ, RTA and dynamic applications, especially for PA and audiophile mastering
4 concurrently selectable EQ modules (31-band graphic EQ, 10-band parametric EQ, Feedback Destroyer plus three Dynamic EQs per stereo channel)
Flexible Compressor/Expander function with Peak Limiter per stereo channel as well as additional Stereo Imager and Stereo Delay for delay line applications
Unique VPQ (Virtual Paragraphic EQ) option allows parametric control of graphic EQs
Ultra high-resolution 61-band real-time FFT Analyzer with additional auto EQ function for room and loudspeaker equalization
Ultra high-resolution 61-band real-time FFT Analyzer with additional auto EQ function for room and loudspeaker equalization
Multi-functional level meters (peak/RMS, VU and SPL meter with dBA/dBC weighting via RTA mic input)
64 user memories for complete setups and/or individual module configurations
Separate RTA mic/line input with phantom power, professional wordclock input and MIDI connections for full remote control, preset dumps and system updates
Ultra high-quality AKM® 24-bit/96 kHz A/D- and D/A converters (113 dB dynamic range)
Open architecture allowing future software updates via MIDI
Two high-performance 32/40-bit floating-point SHARC® digital signal processors for ultimate sonic resolution
Balanced inputs and servo-balanced outputs with gold-plated XLR connectors, stereo aux output, AES/EBU and S/PDIF inputs and outputs (XLR and optical)
Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response and lowest possible power consumption
Conceived and designed by BEHRINGER Germany
