| Model Name: |

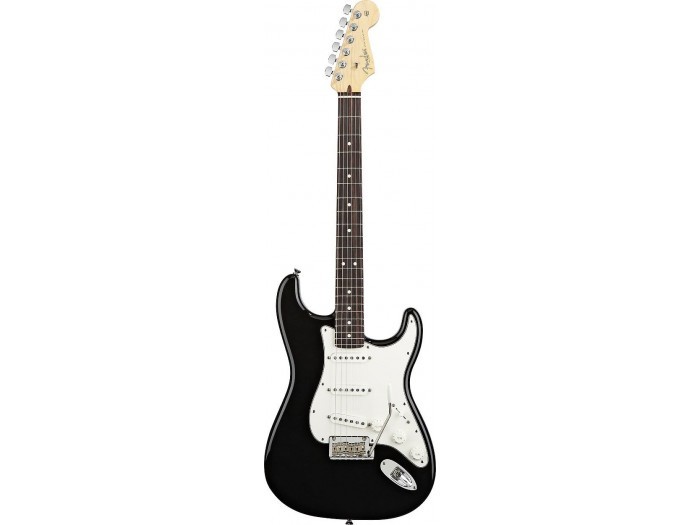

American Standard Stratocaster® |
| Model Number: |
011-0400-(Color #) and 011-0402-(Color #) |
| Series: |
American Standard Series |
| Colors: |
(700) 3-Color Sunburst,
(705) Olympic White,
(706) Black,
(712) Candy Cola,
(747)** Sienna Sunburst, (Ash Body),**add $100.00 for Special Wood Requirements,
(755) Blizzard Pearl,
(769) Charcoal Frost Metallic,
(Urethane Finish) |
| Body: |
Alder on:
(700) 3-Color Sunburst,
(705) Olympic White,
(706) Black,
(712) Candy Cola,
(755) Blizzard Pearl,
(769) Charcoal Frost Metallic,
Ash on:
(747)** Sienna Sunburst, **add $100.00 for Special Wood Requirements, |
| Neck: |
Maple, Modern C Shape,
(Gloss Headstock Face with Satin Urethane Finish on Back of Neck) |
| Fingerboard: |
Rosewood (P/N 011-0400) or Maple (P/N 011-0402), 9.5” Radius (241 mm) |
| No. of Frets: |
22 Medium Jumbo Frets |
| Pickups: |
3 American Strat® Single-Coil Pickups |
| Controls: |
Master Volume,
Tone 1. (Neck Pickup),
Tone 2. Delta Tone™
(Delta Tone) system includes high output bridge pickup and special No-Load tone control for Middle and Bridge Pickups) |
| Pickup Switching: |
5-Position Blade:
Position 1. Bridge Pickup
Position 2. Bridge and Middle Pickup
Position 3. Middle Pickup
Position 4. Middle and Neck Pickup
Position 5. Neck Pickup |
| Bridge: |
2-Point Synchronized Tremolo with New American Standard Bent Steel Saddles |
| Machine Heads: |
Fender® Deluxe Staggered Cast/Sealed Tuning Machines |
| Hardware: |
Chrome |
| Pickguard: |
3-Ply Parchment |
| Scale Length: |
25.5” (648 mm) |
| Width at Nut: |
1.685” (42.8 mm) |
| Unique Features: |
New Bent Steel Saddles with Elongated String Slots,
Copper Infused High Mass 100% Metal Bridge Block,
Thinner Undercoat Finish for Improved Body Resonance,
Tinted Neck,
Maple Fingerboard Neck: Satin Finish on Back, Gloss Finish on Front;
Rosewood Fingerboard Neck: Satin Finish on Back, Gloss Finish on Headstock Front with Buffed Fingerboard,
4-Bolt Neck Attachment with Micro-Tilt™ Adjustment,
Bi-Flex Truss Rod System,
Parchment Knobs and Pickup Covers,
Rolled Fretboard Edges,
Staggered Tuning Keys,
H/S/H Pickup Routing,
New Molded Fender/SKB Case with TSA Locks, Glass Reinforced Nylon Trigger Latches, and Form Fitted Plush Interior |
| Strings: |
Fender® Standard Tension™ Bullet ST3250L, Nickel Plated Steel, (.009 to .042), p/n 073-3250-203 |
| Accessories: |
Fender/SKB® Case, Cable, Strap, Polishing Cloth |
| Case: |
High-Tech, Molded Rectangular SKB® Case |
