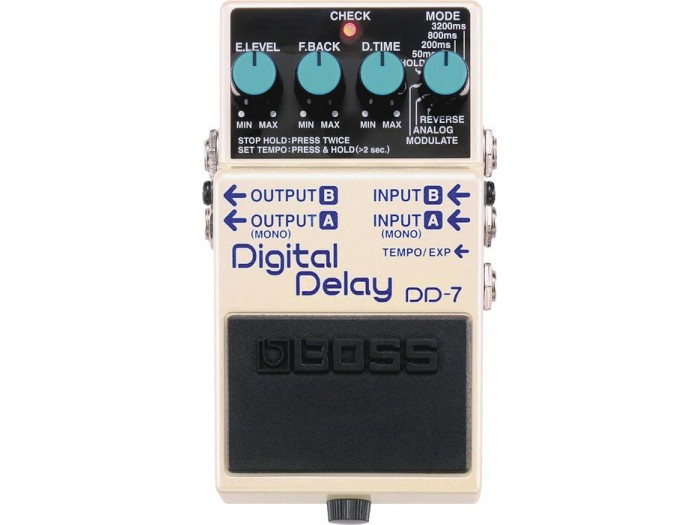

Boss DD-7 Digital Delay je pedala koja preuzima najbolje karakteristike svojih predhodnika i širi njihov kreativni potencijal. Dobijate Modulation Delay mod, klasični modelovani Analog Delay mod, opcije za eksternu kontrolu pedale, duže Delay vreme i još mnogo toga.
Produženo Delay vreme
Do 6.4 sekunde delay vremena je dostupno sa DD-7, što je znatan porast u odnosu na njenog predhodnika. Kao dodatak, Hold mod dozvoljava da do 40 sekundi ulaznog signala bude snimljeno za stvaranje "sound on sound" performansi.
Delay modovi
Boss DD-7 pedala je opremljena sa dva inovativna i napredna moda. Modulation Delay obezbeđuje zvuke obojene chorus-om. Analog Delay nudi modelovanu simulaciju klasične Boss DM-2 pedale voljene zbog svoje karakteristične topline.
Eksterna kontrola
Za hands free kontrolu DD-7 pedale, mogu se koristiti eksterni footswitch i expression pedala (prodaju se odvojeno). Tap Tempo se može kontrolisati posredstvom eksternog footswitch-a, dok se delay time, feedback i effect level kontrolišu expression pedalom.
Produženo delay vreme, do 6.4 sekundi
Modulation Delay mod nudi prirodane, chorus-type zvuke
Analog Delay mod daje modelovanu klasičnu toplinu Boss DM-2 analognog delay-a
Tap tempo moguće kontrolisati putem eksternog footswitch-a
Delay time, feedback, i effect level se mogu kontrolisati putem eksterne Expression pedale
Do 40 sekundi vremena za snimanje "sound on sound" (Hold mod)
Controls: E.LEVEL, F.BACK, D.TIME, MODE, Pedal switch
Indicator: CHECK (Used for indication of TEMPO, HOLD, and to check battery)
Connectors: INPUT-A (MONO) jack, INPUT-B jack, OUTPUT-A (MONO) jack, OUTPUT-B jack, TEMPO/EXP jack, AC adaptor jack (DC 9 V)
Delay Time: 1 ms to 6400 ms*, Maximum recording time: 40 sec (in Hold mode) *Values may vary according to the mode and connections.
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 ohms or greater
Power Supply: DC 9 V, Dry battery, 9 V type (6F22/carbon, 6LR61/alkaline) AC Adaptor (PSA-series: optional), DC 9 V: Dry battery 6F22 (9 V) type (carbon)/ Dry battery 6LR61 (9 V) type (alkaline), AC Adaptor (PSA-series: optional)
Current Draw: 55 mA (DC 9 V)
* Expected battery life under continuous use: Carbon: 1.5 hours, Alkaline: 6 hours. These figures will vary depending on the actual conditions of use.
Accessories: Owner's Manual, Mode Sticker, Application Sticker, Leaflets ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Dry battery (9 V type, 6LR61) *1
Options: AC adaptor (PSA-series), Footswitch: FS-5U, Expression pedal: Roland EV-5
Size and Weight
Width: 73 mm (2-7/8 inches)
Depth: 129 mm (5-1/8 inches)
Height: 59 mm (2-3/8 inches)
Weight: 0.4 kg (1 lb.)
* 0 dBu = 0.775 Vrms
*1 The battery that is supplied with the unit is for temporary use, intended primarily for testing the unit's operation. Alkaline battery recommended when replacing the battery.
*The specifications are subject to change without notice.
