Naziv proizvoda

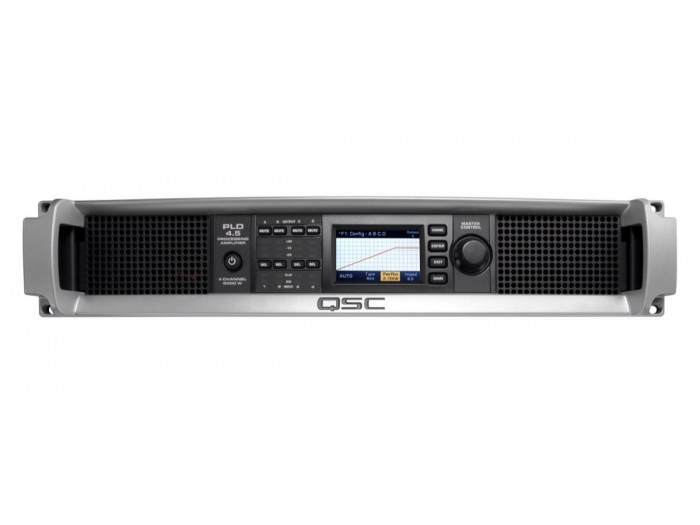

QSC PLD4.5

QSC PLD4.5
[klikni na sliku za uvećan prikaz]

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

With four flexible channels of up to 2000 watts each, lightweight PowerLight universal power supply, DSP on-board for each channel, and all the right connectors, the PLD4.5 is ideal for production and live sound applications.



Karakteristike:

  PLD4.2 PLD4.3 PLD4.5
  Peak  Continuous Peak Continuous Peak Continuous
4 Independent Channels
A, B, C, D

500 W 400 W 900 W 625 W 1200 W 1150 W
 4Ω 700 W 400 W 1400 W 625 W 2000 W 1250 W
 2Ω 625 W  325 W 1200 W 625 W 1600 W 625 W
2 Channel BTL Bridged
A+B or C+D
Doubles Voltage

1200 W 800 W 2400 W 1250 W 4000 W 2250 W
1500 W 600 W NR* NR* NR* NR*
NR* NR* NR* NR* NR* NR*
2 Channel Parallel
AB or CD
Doubles Current

500 W 400 W 1300 W 1150 W 1200 W 1150 W
950 W 800 W 2000 W 1250 W 2400 W 2250 W
1200 W 800 W 2500 W 1250 W 4000 W 2100 W
1 Channel 3CH Parallel
ABC
Triples Current

500 W 400 W 1400 W 1150 W 1400 W 1150 W
950 W 800 W 2400 W 2000 W 2500 W 2400 W
1800 W 1200 W 3500 W 2500 W 4500 W 4100 W
1 Channel Bridged/Parallel
AB+CD
Doubles Current and Voltage

1600 W 1500 W 3500 W 2500 W 4500 W 4200 W
2500 W 1600 W 5000 W 2500 W 7500 W 4200 W
NR* NR* NR* NR* NR* NR*
1 Channel 4CH Parallel
ABCD
Quadruples Current

500 W 400 W 1400 W 1150 W 1600 W 1150 W
1000 W 800 W 3000 W 2500 W 3000 W 2300 W
1700 W 1600 W 5000 W 2500 W 5300 W 4200 W

NR* = Not Recommended due to excessive current draw
BOLD = Optimal configuration fo rthe load and channel count

General Specifications

    PLD4.2 PLD4.3 PLD4.5
Typical Distortion
0.01–0.06%
Maximum Distortion   1.0%
Frequency response   20 Hz–15 kHz ±0.2 dB
20 Hz–20 kHz +0.2/-0.7 dB
Noise:
Unweighted Output Unmuted

-101 dB

Noise:
Weighted Output Muted
  -109 dB
Gain 1.2V 34.0 dB 38.4 dB 38.4 dB
Damping factor   >150
Input impedance   >10 kΩ, balanced or unbalanced
Maximum rms input level 3.9V
12.28 V (+24 dBu)

1.2V 3.88 V (+14 dBu)
Amplifier and load protection   Short circuit, open circuit, thermal, RF protection. on/off muting, DC fault shutdown, active inrush limiting, input current limiting
AC Power Input   4.2: Universal Power Supply 100-132/200–240 VAC, 50–60 Hz
4.3/4.5: Universal Power Supply 100–240 VAC, 50–60 Hz

Controls, Indicators and Connections

  PLD4.2 PLD4.3 PLD4.5
Controls and indicators (front) Power   • Channel MUTE Buttons • Channel SELECT buttons • Channel input signal and CLIP LED indicators • Channel output and LIMIT LED meters • HOME, ENTER, EXIT, GAIN navigation buttons • Control knob
Controls and indicators (rear) AC Power Disconnect

Input connectors Female XLR
Output connectors   NL4
