Naziv proizvoda

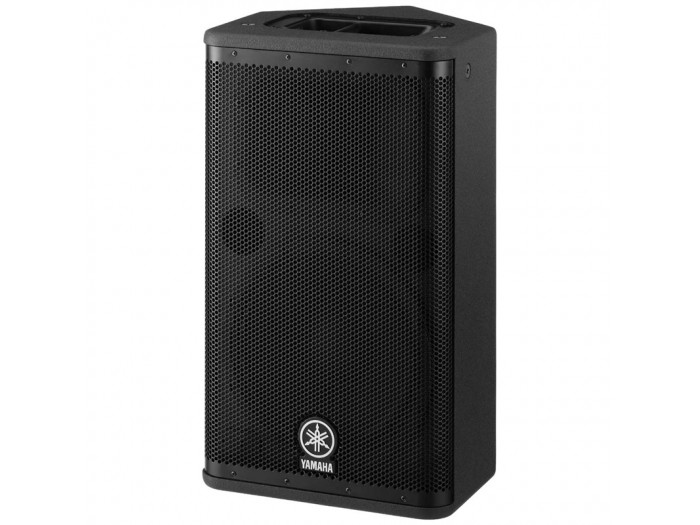

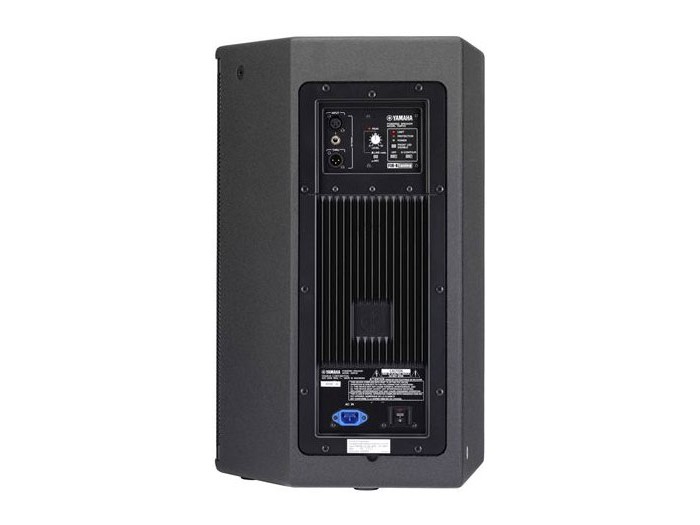

Yamaha DSR112

Yamaha DSR112
[klikni na sliku za uvećan prikaz]
  • Yamaha DSR112
  • Yamaha DSR112
Naša cena:
127.071,00 DIN
158.839,00 DIN





Korpa

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

The DSR112 is the most compact and versatile multi-purpose 2-way active loudspeaker system in the series. Capable of an astonishing maximum peak SPL of 134dB, the DSR112 is a perfect match to a wide range of portable PA and installation applications. Ideal for use as a front of house main PA, as well as for stage monitoring applications, it also includes integrated M10 rigging points for suspended applications.

  • Ultra-precise 48-bit digital sound processing
  • D-CONTOUR (Dynamic-CONTOUR) multi-band dynamic processing
  • All-new 1300W Class-D amplifiers with PFC switching mode power supply
  • Maximum SPL 134dB peak
  • Extensive protection of the transducers, amplifiers and power supply from high performance DSP
  • Premium-grade, custom-designed transducers
  • Exclusive 90° × 60° CD Waveguide Horn
  • Compact and lightweight (21.2kg / 47lbs)
  • Performs as main PA or floor monitor
  • Stand and pole mountable, with 35mm pole sockets
  • Integrated M10 rigging points for suspended applications

Ultra-precise 48-bit digital sound processing

- Digital FIR-X tuning™ (linear phase FIR filter)
- High performance 48-bit DSP (76-bit accumulator)
- 24-bit discrete AD and DA converters

D-CONTOUR (Dynamic-CONTOUR) multi-band dynamic processing



All-new 1300W Class-D amplifiers with PFC* switching mode power supply

- LF: 850W
- HF: 450W
*Power Factor Correction

Maximum SPL 134dB peak



Extensive protection of the transducers, amplifiers and power supply from highperformance DSP



Premium-grade, custom designed transducers

- LF:High power 12" neodymium woofer with 3" voice coil
- HF:2" precision titanium diaphragm, neodymium, compression driver

Exclusive 90° × 60° CD Waveguide Horn



Compact and lightweight (21.2kg / 47lbs)



Performs as main PA or floor monitor



Stand and pole mountable, with 35mm pole sockets



Integrated M10 rigging points for suspended applications

Karakteristike:

Speaker type 12" 2-way, Bi-amp Powered Speaker, Bass-reflex Type
Frequency response -10dB 55Hz ~ 20kHz
-3dB 60Hz ~ 18kHz
Nominal coverage H 90°
V 60°
Components LF 12" cone
HF 2" Titanium diaphragm compression driver
Output power 1300W (LF: 850W HF: 450W)
Maximum output level (1m; on axis) 134dB SPL
Processors D-CONTOUR (Dynamic CONTOUR)
I/O connetcors INPUT: XLR-3-31 x1 (Balanced), TRS Phone Jack x1 (Balanced) OUTPUT:XLR-3-32 x1 (Balanced), Parallel connection with INPUT
Dimensions W 370mm (14 5/8")
H 638mm (25 2/8")
D 368mm (14 4/8")
Net weight 21.2kg (47lbs)
Flying and mounting hardware 3 x M10 (TOP L/R 1pc each, Bottom rear 1pc)
Pole socket 35mm (Bottom Board)
Power consumption 100W
Crossover FIR-X tuning (linear phase FIR filter) 1.7kHz
