JBL PRX735

JBL PRX735

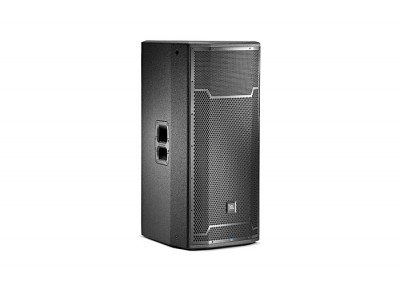

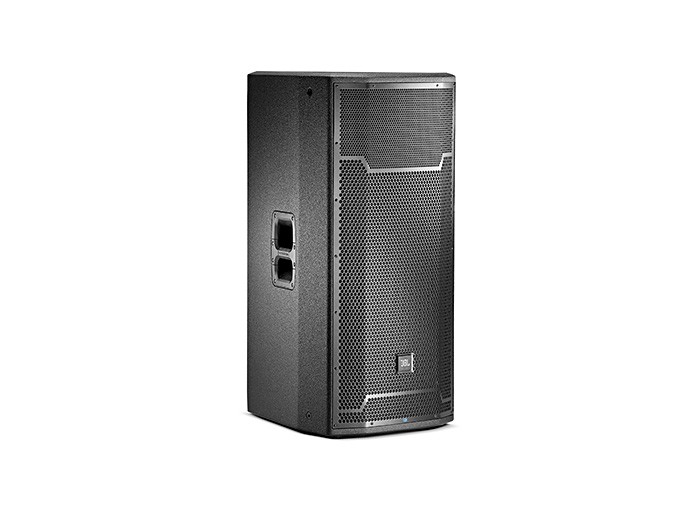

[klikni na sliku za uvećan prikaz]
Naša cena:
225.189,00 DIN


Korpa

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

The PRX735 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a broad bandwidth.



FEATURES

136 dB peak SPL

15" Differential Drive® low-frequency driver for low-distortion and higher SPL

165 mm (6.5 in) horn loaded midrange transducer

1.5" diameter next generation JBL neodymium compression driver

JBL designed waveguide for accurate coverage

Efficient Class-D amplifier technology

Normal and Boost user selectable EQ presets

DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ

Line level and direct microphone input capability

Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through

Multiple injection molded handles with backing cup for easy transport

Integrated M10 suspension points for easy setup

Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.

Cloth backed, dent-resistant 16 gauge steel grilles



APPLICATIONS

This speaker is ideally suited to applications where the program material exhibits subtlety and nuance. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with the extended low frequencies of the PRX718XLF, complete control over the entire audio spectrum is attained. As with all the full-range PRX700 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs.

The PRX735 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a wide bandwidth. The PRX735 is comprised of one 15 in 275G Differential Drive® woofer, a 165 mm (6.5 in) 196H horn-loaded mid-range and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a 1500 watt Audio Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of

1000 lbs. each.

The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.



Karakteristike:

Power Rating          1500 W

Frequency Range (-10 dB)      Normal: 35 Hz – 20 kHz

Boost: 34 Hz – 20 kHz

Frequency Response (±3 dB)  Normal: 42 Hz – 20 kHz

Boost: 39 Hz – 20 kHz

Coverage Pattern    90° x 50° nominal

Directivity Index (DI)               10.5 dB

Directivity Factor (Q)              11.2

Crossover Frequency               480 Hz, 2.0 kHz

Maximum SPL         Normal: 136dB

Boost: 136dB

Signal indicators     Limit: Yellow LED indicates peak output has been reached and dsp

limiter is acting

Signal: Green LED indicates signal present

Power/Standby: Blue indicates system has power and ready to pass audio,

Red indicates system has power but is in a power saving mode and will not

pass audio.

Dynamic Control (Input)         dbx Type IV™ limiter circuit

Input Impedance     20K Ohms (balanced), 10K Ohms (unbalanced)

LF Driver  1 x JBL 275G 380mm (15 in) woofer

MF Driver                1 x JBL 196H 165mm (6.5 in) horn-loaded midrange transducer

HF Driver 1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver"

Enclosure                Trapezoidal, 18 mm, plywood

Suspension / Mounting          12 x M10 Suspension Points

Transport                2 x integrated handle with injection molded backing cup

Finish      Obsidian DuraFlex™ finish

Grille       Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

Input Connectors     2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input

Output Connector   1 male XLR balanced output

Dimensions (H x W x D)         952.5 mm x 445.0 mm x 537.97 mm

(37.5 in x 17.52 in x 21.18 in)

Net Weight             34.9 kg (77 lb)
