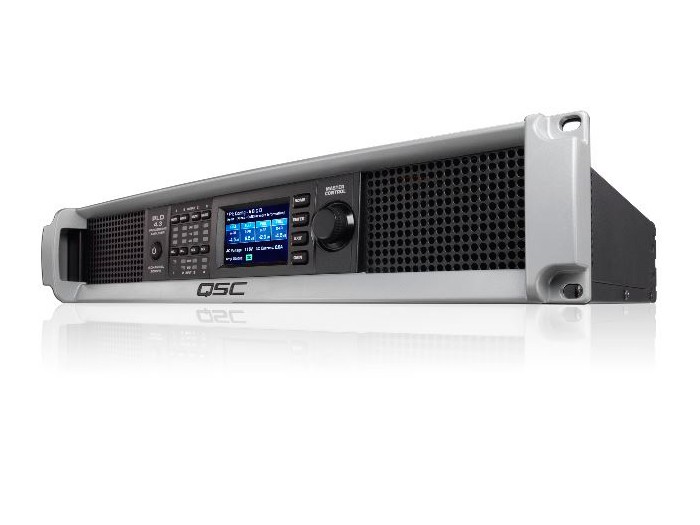

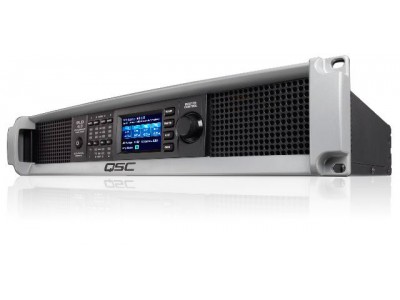

With four flexible channels of up to 1400 watts each, lightweight PowerLight universal power supply, DSP on-board for each channel, and all the right connectors, the PLD4.3 is ideal for production and live sound applications.
Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!
With four flexible channels of up to 1400 watts each, lightweight PowerLight universal power supply, DSP on-board for each channel, and all the right connectors, the PLD4.3 is ideal for production and live sound applications.
PLD4.2 | PLD4.3 | PLD4.5 | |||||
Peak | Continuous | Peak | Continuous | Peak | Continuous | ||
4 Independent Channels A, B, C, D |
8Ω | 500 W | 400 W | 900 W | 625 W | 1200 W | 1150 W |
4Ω | 700 W | 400 W | 1400 W | 625 W | 2000 W | 1250 W | |
2Ω | 625 W | 325 W | 1200 W | 625 W | 1600 W | 625 W | |
2 Channel BTL Bridged A+B or C+D Doubles Voltage |
8Ω | 1200 W | 800 W | 2400 W | 1250 W | 4000 W | 2250 W |
4Ω | 1500 W | 600 W | NR* | NR* | NR* | NR* | |
2Ω | NR* | NR* | NR* | NR* | NR* | NR* | |
2 Channel Parallel AB or CD Doubles Current |
8Ω | 500 W | 400 W | 1300 W | 1150 W | 1200 W | 1150 W |
4Ω | 950 W | 800 W | 2000 W | 1250 W | 2400 W | 2250 W | |
2Ω | 1200 W | 800 W | 2500 W | 1250 W | 4000 W | 2100 W | |
1 Channel 3CH Parallel ABC Triples Current |
8Ω | 500 W | 400 W | 1400 W | 1150 W | 1400 W | 1150 W |
4Ω | 950 W | 800 W | 2400 W | 2000 W | 2500 W | 2400 W | |
2Ω | 1800 W | 1200 W | 3500 W | 2500 W | 4500 W | 4100 W | |
1 Channel Bridged/Parallel AB+CD Doubles Current and Voltage |
8Ω | 1600 W | 1500 W | 3500 W | 2500 W | 4500 W | 4200 W |
4Ω | 2500 W | 1600 W | 5000 W | 2500 W | 7500 W | 4200 W | |
2Ω | NR* | NR* | NR* | NR* | NR* | NR* | |
1 Channel 4CH Parallel ABCD Quadruples Current |
8Ω | 500 W | 400 W | 1400 W | 1150 W | 1600 W | 1150 W |
4Ω | 1000 W | 800 W | 3000 W | 2500 W | 3000 W | 2300 W | |
2Ω | 1700 W | 1600 W | 5000 W | 2500 W | 5300 W | 4200 W |
NR* = Not Recommended due to excessive current draw
BOLD = Optimal configuration fo rthe load and channel count
PLD4.2 | PLD4.3 | PLD4.5 | ||
Typical Distortion | 0.01–0.06% |
|||
Maximum Distortion | 1.0% | |||
Frequency response | 20 Hz–15 kHz ±0.2 dB 20 Hz–20 kHz +0.2/-0.7 dB |
|||
Noise: Unweighted Output Unmuted |
-101 dB |
|||
Noise: Weighted Output Muted |
-109 dB | |||
Gain | 1.2V | 34.0 dB | 38.4 dB | 38.4 dB |
Damping factor | >150 | |||
Input impedance | >10 kΩ, balanced or unbalanced | |||
Maximum rms input level | 3.9V | 12.28 V (+24 dBu) |
||
1.2V | 3.88 V (+14 dBu) | |||
Amplifier and load protection | Short circuit, open circuit, thermal, RF protection. on/off muting, DC fault shutdown, active inrush limiting, input current limiting | |||
AC Power Input | 4.2: Universal Power Supply 100-132/200–240 VAC, 50–60 Hz 4.3/4.5: Universal Power Supply 100–240 VAC, 50–60 Hz |
PLD4.2 | PLD4.3 | PLD4.5 | |
Controls and indicators (front) | Power • Channel MUTE Buttons • Channel SELECT buttons • Channel input signal and CLIP LED indicators • Channel output and LIMIT LED meters • HOME, ENTER, EXIT, GAIN navigation buttons • Control knob | ||
Controls and indicators (rear) | AC Power Disconnect |
||
Input connectors | Female XLR | ||
Output connectors | NL4 |
