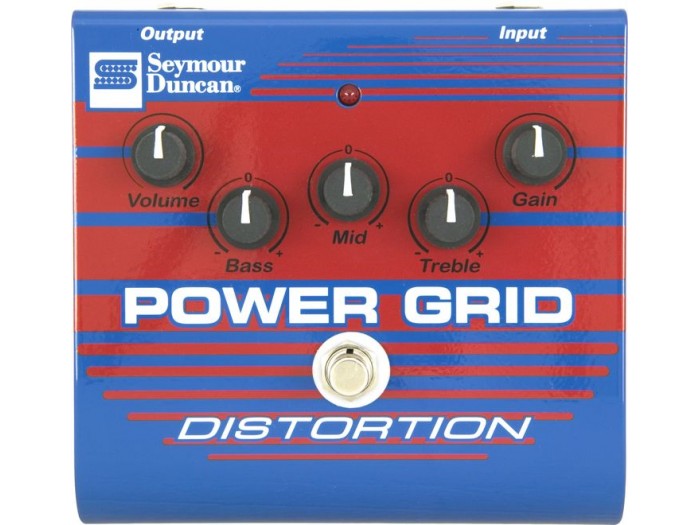

Seymour Duncan SFX-08 Power Grid Distortion Pedal je high-gain, tranzistorska distorzija sposobna da izvede bezbroj tonova, zahvaljujući sekciji ekvilajzera od 3 banda. The Power Grid je savrsena pedala za distorziju koja se preporučuje za sve pravce rok stila.
Gain Range: 0 97dB
Input Impedance: 100KOhm
Output Impedance: 25KOhm
Max Output before Saturation: 2.6Vrms
S/N Ratio: 120dB referred to the input with 20KOhm
source impedance
THD @ 1Vrms out @ 1 KHz with 60dB of gain: 0.12%
Type of Circuitry: Discrete, class A Bi-polar Transistor
Power: DC 9 12V; Battery or Regulated DC Adapter
Current Consumption: 4.5 mA maximum
Dimensions: 5-1/2" W x 5-1/5" D x 2-1/5" H
Weight: 2 lbs.
Chassis Material: 16 Gauge Steel
