A cornerstone of the OAS open architecture amplified systems, distinguished by excellent sound performance, maximum practicality, unmistakable look and peerless size/performance ratio.

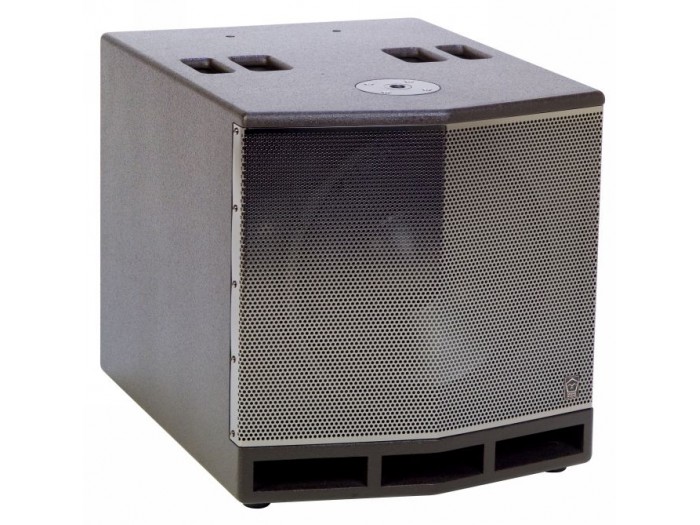

The AS 151S speaker is a powered subwoofer with a 15” B&C customer neodymium speaker.
The heart of the speaker cabinet is a 800 watt RMS digital power amplifier (AES standard) with a switching power supply.
Dynamic control is handled by a digital processor that optimizes sound across the entire frequency spectrum and maximizes component reliability.
The AS 151S powered subwoofer is equipped with active bypass/high outputs to send to AS 601 or AS 602 satellites.
ACOUSTICAL SPECIFICATIONS
Sound pressure
Maximum peak SPL : 133 dB
Frequency response
Nominale (±3dB) : 45 - 120 Hz
Utile w/out Virtual SUB : 41 - 120 Hz
Transducers
Woofer LF : 15"
Unità magnetica : Neodimio
ELECTRIC SPECIFICATIONS
Power amp
Type : Digital
Power RMS : 800 Watt@4Ω
Slew rate : 16V / us
THD : <0,1 %
Cooling : Convection, forced
Protections
DC current
Thermal
Short circuit
Limiter
Crossover
Active : 120 Hz
Audio input
Sensitivity 500 mV
Impedance 10 kΩ
AC Power
Type : Switching
Voltage : see note
Power average/max : 900W / 1300W
CONNECTIONS & CONTROLS
Controls
Sub level
Hi-pass out
Gnd In - Gnd Out lift
Indicators LEDs
Power On
Clip
Connections
L&R Line In (xlr)
L&R Line Out (xlr)
L&R Hi pass Out (xlr)
L&R AC In (VDE)
CONSTRUCTION SPECIFICATIONS
Cabinet
Wood : Poplar plywood
Finish : Textured paint
Color : Brown 8022
Protective grille : Nikel-coated
Handles
Q.ty : 2
Location : Top
Hardware
Stand adapter M20
Dimensions
Width : 502 mm - 19,76"
Height : 524 mm - 20,63"
Depth : 667 mm - 26,26"
Weight
22,1 kg - 48,72 lbs
