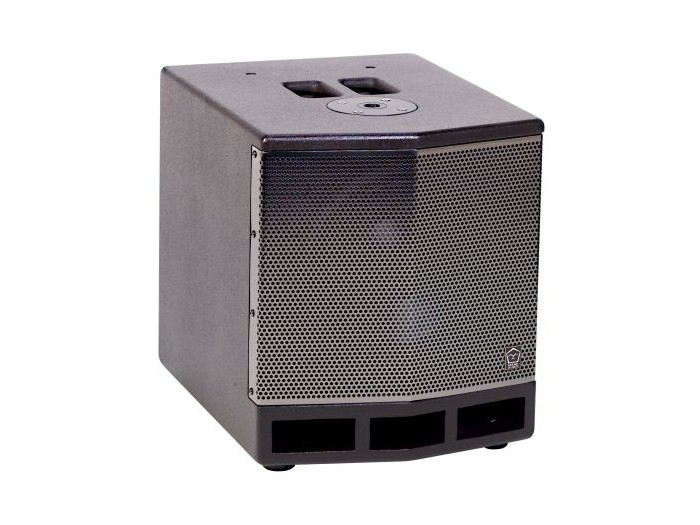

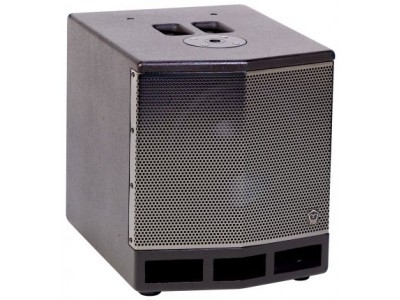

Markaudio AS 101S

Mark Audio AS 101S je aktivni subwoofer sa specijalno rađenim B&C 10-inčnim zvučnikom. Srce ovog moćnog sub-a čini digitalno pojačalo snage sa 500 watt-i RMS-a i isključivim napajanjem. Dinamička kontrola je omogućena digitalnim procesorom koji optimizuje zvuk celog frekventnog opsega i maksimizira pouzdanost komponenti. Mark Audio AS 101S aktivni subwoofer je opremljen sa aktivnim bypass/high izlazimaza AS 601 ili AS 602 satelite.

ACOUSTICAL SPECIFICATIONS

Sound pressure

Maximum peak SPL : 129 dB

 Frequency response

Nominal (±3dB) : 49 - 120 Hz
Usable w/out Virtual SUB : 47 - 120 Hz

Transducers

Woofer LF : 10"
Magnet : Neodymium

ELECTRIC SPECIFICATIONS

Power amp

Type : Digital
Power RMS : 500 Watt@4Ω
Slew rate : 16V / us
THD : <0,1 %
Cooling : Convection, forced

Protections

DC current
Thermal
Short circuit
Limiter

 Crossover

Active : 120 kHz

Audio input

Sensitivity : 500 mV
Impedance : 10 kΩ

AC Power

Type : Switching
Voltage : See note
Power average/max : 600W / 900W

CONNECTIONS & CONTROLS

Controls

Sub level
Hi-pass out
Gnd In - Gnd Out lift

 Indicators LEDs

Power On
Clip

Connections

L&R Line In (xlr)
L&R Line Out (xlr)
L&R Hi pass Out (xlr)
AC In (VDE)

CONSTRUCTION SPECIFICATIONS

Cabinet

Wood : Poplar plywood
Finish : Textured paint
Color : Brown 8022
Protective grille : Nikel-coated

Handles

Q.ty : 1
Location : Top

 Hardware

Stand adapter M20

Dimensions

Width : 362 mm - 14,25"
Height : 424 mm - 16,69"
Depth : 475 mm - 18,70"

Weight

 13,5 kg - 29,76 lbs
