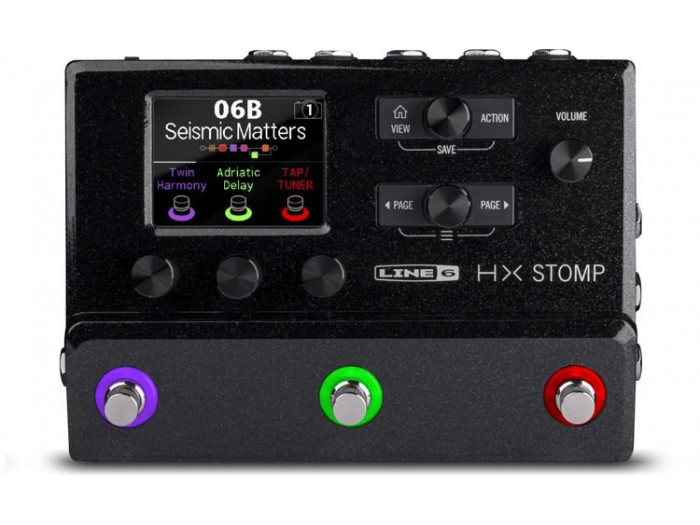

Line 6 HX Stomp

The brains and brawn* of the award-winning Helix family comes to a board-friendly 3-switch stomp in the Line 6 HX Stomp. The HX Stomp makes the ultimate standalone travel rig, a fully loaded modeling and FX engine to front-load an amp, and a capable audio interface with re-amping capabilities. Choose up to six blocks — amps, cabs, and stomps — per preset, and assign switches to suit your particular needs. The HX Stomp is equipped for real-world gigging applications with 126 user presets for guitars, bass, and keys; and tons of I/O, which include TRS balanced outs, traditional MIDI switching, an FX return for 4-cable amp integration, and a 2-channel expansion jack for expression pedals or additional external switches.

*The HX Stomp is powered by a single SHARC ADSP-21469 processor, versus the Helix's two.

• Pedal Type:Multi-FX with USB Interface
• Analog/Digital:Digital
• Presets:126 (42 banks x 3 presets), 3 Snapshots per preset
• Number of Effects:Over 300 (effects & modeling combined)
• Effects Types:123 Helix, 77 Legacy, 6 simultaneous FX
• Amp Modeling:77 x Amps, 37 x Cabinets, Impulse Response support
• Looper:60 seconds (mono), 30 seconds (stereo)

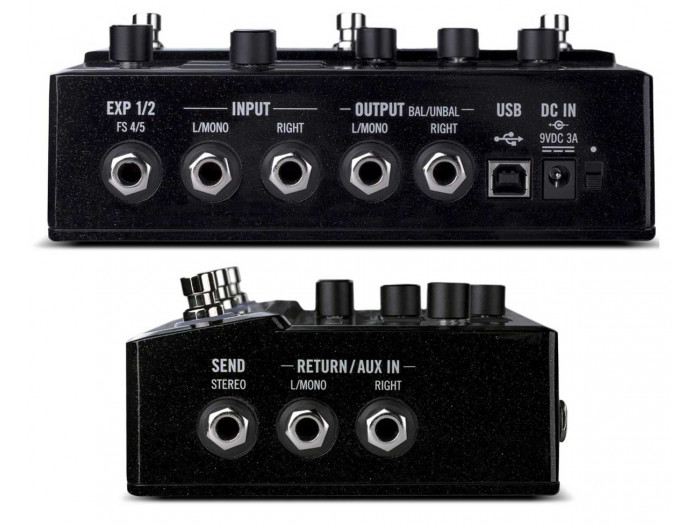

• Inputs:2 x 1/4" (L/mono,R), 2 x 1/4" (L/R, aux in)
• Outputs:2 x 1/4" (L/mono,R), 1 x 1/4" (stereo send)
• MIDI I/O:In, Out/Thru
• USB:1 x Type B (8 x 6)
• Headphones:1 x 1/4"
• Other I/O:1 x 1/4" TRS (expression/footswitch)
• Bypass Switching:DSP Bypass (switchable)
• True Bypass:Yes
• Features:24-bit/192kHz converters, SHARC DSP Processor
• Software:HX Editor (librarian, IR loader)
• Compatibility:Windows, macOS
• Power Source:9V DC power supply (included)
• Height:2.6"
• Width:7.01"
• Depth:4.96"
• Weight:1.75 lbs.
• Manufacturer Part Number:99-060-2405
