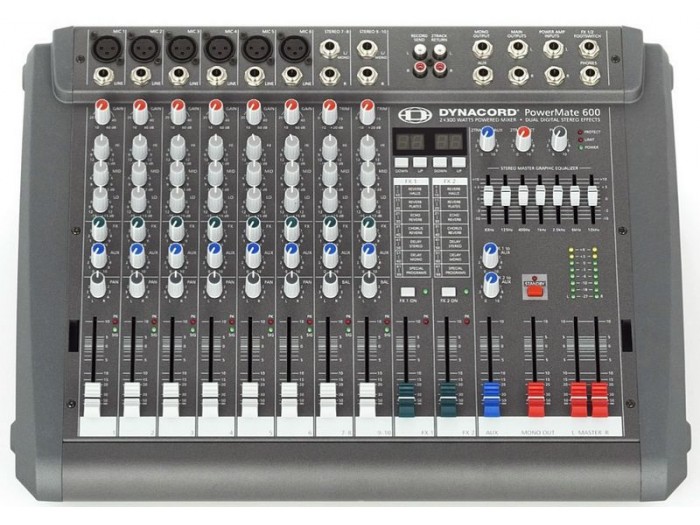

DYNACORD POWERMATE 600-2

Dynacord Powermate 600-2 Powered Mixer - 2x 340W amplifier @ 4 Ohm, 6x mic/line channel, 2x stereo line input, 2x aux send, 2x 24bit stereo effects processor, Speakon outs, new 7-band master EQ. Weight: 13kg.

     Specifications Maximum Midband Output Power, 1 kHz, THD=1%, Dual Channel: into 4 Ohms 2x270W, into 8 Ohms 2x150W
     Rated Output Power, THD=0.1%, Single Channel: into 4 Ohms 2x300W, into 8 Ohms 2x180W
     Maximum Midband Output Power, 1 kHz, THD=1%, Single Channel: into 4 Ohms 2x340W, into 8 Ohms 2x200W
     Maximum Output Voltage of power amplifier, no load 43 Vrms
     THD at 1kHz, MBW=80kHz:
     MIC input to Main L/R output, +16 dBu, typical < 0.006%
     Power amplifier input to Speaker L/R output < 0.08%
     DIM 30, power amplifier < 0.03%
     IMD-SMPTE, power amplifier, 60Hz, 7 kHz < 0.2%
     Frequency Response, -3dB ref. 1kHz:
     Any input to any Mixer output 15Hz ... 60kHz
     Any input to Speaker L/R output 30Hz ... 40kHz
     Crosstalk, 1kHz:
     Fader and AUX-Send attenuation > 80 dB
     Channel to channel > 70 dB
     CMRR, MIC input, 1kHz > 80 dB
     Input Sensitivity, all level controls in max. position:
     MIC input -74 dBu (155 μV)
     LINE Input (Mono) -54 dBu (1.55 mV)
     LINE Input (Stereo) -34 dBu (15.5 mV)
     Power Amplifier Input +6 dBu (1.55 V)
     Maximum Level, mixing desk:
     MIC inputs + 11 dBu
     Mono Line inputs + 30 dBu
     Stereo Line inputs + 20 dBu
     All other inputs + 20 dBu
     Record Send output + 14 dBu
     All other outputs + 20 dBu
     Input Impedances:
     MIC 1.8 kOhms
     Insert Return 10 kOhms
     EQ Input and 2 Track Return 15 kOhms
     All other inputs > 15 kOhms
     Output Impedances:
     Record Send 1 kOhm
     Phones 47 Ohms
     All other outputs 75 Ohms
     Equivalent Input Noise, MIC Input, A-weighted, 150 Ohms -130 dBu
     Noise, Channel inputs to Main L/R outputs, A-weighted:
     Master fader down -90 dBu
     Master fader 0 dB, Channel fader down -89 dBu
     Master fader 0 dB, Channel fader 0 dB, Channel gain unity -83 dBu
     Signal/Noise-Ratio, power amplifier, A-weighted 105 dB
     Equalization:
     LO Shelving ± 15 dB / 60 Hz
     MID Peaking, mono inputs ± 15 dB / 2.4 kHz
     MID Peaking, stereo inputs ± 15 dB / 2.4 kHz
     HI Shelving ± 15 dB / 12 kHz
     Master EQ, 2x7-band, 63, 125, 400, 1k, 2k5, 6k, 12k Hz ± 10 dB
     Power Consumption at 1/8 maximum output power, 4 Ohms 450 W
     Dimensions, (WxHxD), mm 461.5 x 176.5 x 366.5
     Weight, without lid 13kg
     Optional RMK-600 (Rack-Mount-Kit PowerMate600), Gooseneck Lamp, 12V/2.4W, 12", XLR, FS11 (Footswitch)
