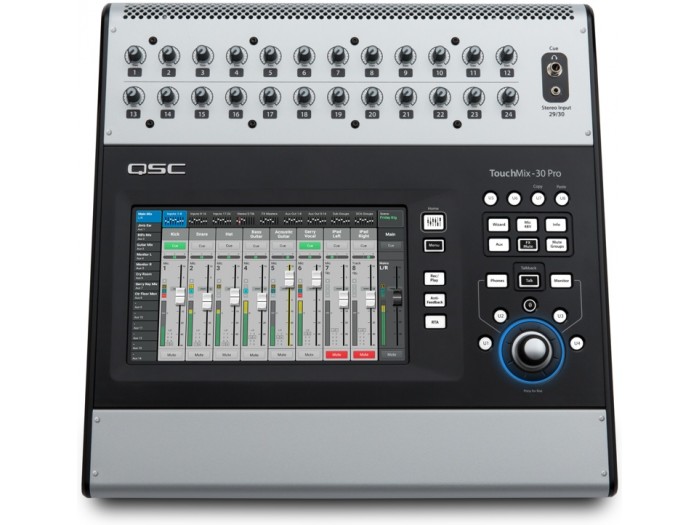

TouchMix is quite simply the most powerful, compact mixer ever created. It offers the features, capabilities and sound quality of the world's most esteemed large format consoles in a highly compact and portable package that’s small enough to be carry-on luggage. Perfect for musicians, larger bands, AV production professionals and performance venues, the TouchMix-30 Pro goes "Beyond Mixing" by offering Wizards, Presets and other beneficial tools that help seasoned audio professionals and novices alike get great results quickly and easily.
Its 32 mixing channels (24 Mic/Line, 6 Line, Stereo USB) and 16 outputs offer tremendous signal management flexibility for a wide range of applications while advanced features such as class-A microphone preamps, Anti-Feedback and Room Tuning Wizards, two real-time analyzers (RTA), patch matrix, 32-channel direct-to-external-drive recording and DAW interface with macOS® computers make it equally competent as both a professional live sound or recording tool.
The touch-and-turn interface of TouchMix allows for tactile control over fader and mixer parameters while also providing a hardware connection to mixer functions. Mixer functions and displays are duplicated via iOS or Android devices over Wi-Fi, providing both portable, wireless connectivity as well as additional control surfaces of mixer functionality.
Type Digital
Channels 32
Inputs - Mic Preamps 24 (20 x XLR, 4 x XLR-1/4" combo)
Phantom Power 24 channels, Talkback
Inputs - Line 20 x XLR, 4 x XLR-1/4" combo, 6 x 1/4" TRS (stereo), 1 x 1/8" (stereo in)
Inputs - Other 2 x stereo USB
Outputs - Main 2 x XLR (main mix), 2 x XLR (monitor out)
Outputs - Direct 14 x XLR (mono mixes)
Outputs - Other 2 x 1/4" TRS (Aux 11/12 monitor, Aux 13/14 monitor)
Data I/O Ethernet RJ-45 (connect to Wi-Fi router)
USB 2 x Type A, 1 x Type B
Computer Connectivity USB, Ethernet (connect router for TouchMix Control App - iOS/Android)
Headphones 2 x 1/4"
Faders 10" Multi-touch screen
EQ Bands 4-band Parametric EQ, Shelf EQ, 1/3 octave graphic EQ, Filters, 6-band parametric EQ (sub groups, output channel)
Effects Reverb, Echo, Delay, Chorus, Pitch Shift and more (6 simultaneous)
Signal Processing Gate, Compressor, Pitch Corrector
Features Anti-feedback, Room tuning, 2 x RTA, 99 user scenes/presets
Talkback 1 x XLR
Height 7.5"
Depth 18.1"
Width 16.9"
Weight 17.5 lbs.
