15” woofer; 6.5” midrange woofer; 1.75” diaphragm compression driver
75° conical DMT coverage
Maximum SPL 134 dB peak
1000-watt Class D power modules in all models (2 × 500 W continuous)
Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performance
DMT™ (Directivity Matched Transition) ensures uniform coverage across the entire sound field
Rugged, texture-painted birch enclosures
Four-position Mic/Line gain
Tour-grade 16 gauge steel grilles
Comfortable ergonomic handles
35 mm standard (non-tilt) pole socket
M10 rigging points for suspended installation
Transducers
Low-frequency
Mid-frequency
High-frequency

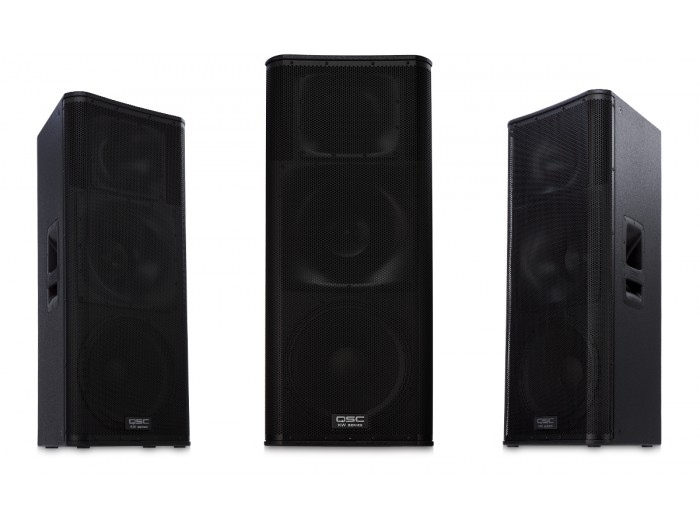

15" 3-way trapezoidal
15" cone transducer
6.5" mid range cone transducer
1.75" diaphragm compression driver
Frequency Response (-6 dB) 35 Hz to 18 kHz
Frequency Range (-10 dB) 33 Hz to 20 kHz
Nominal Coverage (-6 dB) 75° axisymmetric
Maximum SPL 134 dB peak
Amplifier
Power Output 1000 W Class D (500 W LF + 500 W MF/HF) continuous
2000 W peak
Input Impedance
Channel A XLR / ¼":
Mic gain setting Balanced Unbalanced
0 dB 38 kΩ 19 kΩ
+12 dB 10 kΩ 5 kΩ
+24 dB 2.66 kΩ 1.33 kΩ
+36 dB 660Ω 330Ω
Channel B XLR / ¼": 38 kΩ balanced / 19 kΩ unbalanced
Channel B RCA: 10 kΩ
Controls Power, Gain A, Gain B, Channel A Input Gain (0 dB / 12 dB / 24 dB / 36 dB), LF Mode (Ext Sub/Norm/DEEP™), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)
Indicators Power, Signal A, Signal B, Standby, Limit, Mic (24 dB and 36 dB settings)
Connectors Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector
Cooling On demand, 50 mm variable speed fan
Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
Transducer Protection Thermal limiting, excursion limiting
AC Power Input Universal power supply 100–240 VAC, 50 to 60 Hz
AC Power Consumption (1/8 Power)
100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A
Enclosure
Material 15 mm painted birch plywood
Finish Black textured paint
Grille Black powder coated 16 gauge steel
Dimensions (HWD) mm 1094 × 470 × 427
Net Weight 39.5 kg
Available Accessories KW153 cover, KW M10 kit
