Naziv proizvoda

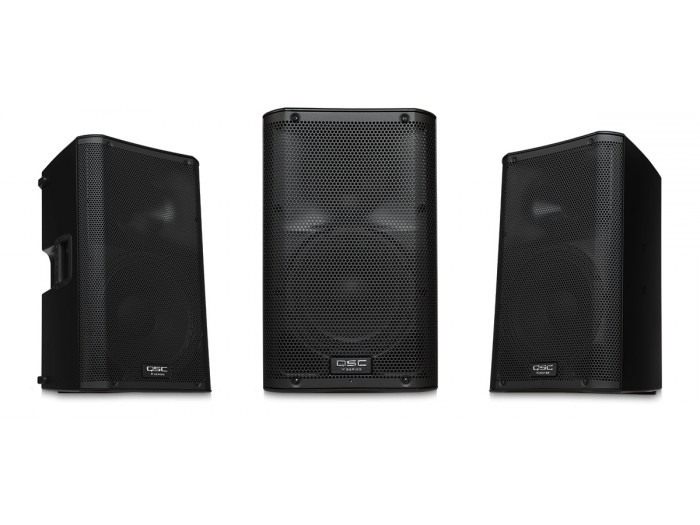

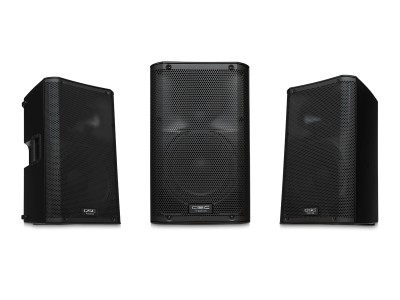

QSC K10

QSC K10
[klikni na sliku za uvećan prikaz]
Ovaj proizvod trenutno nije dostupan.

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

10” Woofer; 1.75” diaphragm compression driver

90° conical DMT coverage

Maximum SPL 129 dB peak

Attractive and professional appearance

Rugged ABS enclosures

16-gauge powder coated steel grille

1000-watt continuous Class D power modules in all models

Functions as a monitor wedge

Comfortable ergonomic handles

35 mm pole sockets with Tilt-Direct™

M10 rigging points

Eyebolt and yoke mount accessories available

Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output

Extensive DSP enhances system performance:

DMT™ (Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural "dead" or "hot" frequency zones.

Intrinsic Correction™, first featured in our high-end line-array products maps 65–75 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat band pass target. The result is a speaker that behaves equally well across the entire sound field.

DEEP™ and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.

GuardRail™ protection protects both the amplifier module and your performance from unnatural and destructive clipping.

Karakteristike:

Configuration

Multipurpose 2-way

Transducers
Low-frequency
High-frequency


10" cone transducer
1.75" diaphragm compression driver

Frequency Response (-6 dB)

60 Hz - 18 kHz

Frequency Range (-10 dB)

56 Hz - 20 kHz

Nominal Coverage (-6 dB)

90° conical DMT

Maximum SPL1

129 dB peak

Amplifiers

Power Output2

1000 W continuous Class D
(500 W LF, 500 W HF)
2000 W peak

Input Impedance

XLR / ¼": 40 kΩ balanced / 20 kΩ unbalanced
XLR / ¼" MIC mode: 2260Ω balanced
RCA: 10 kΩ

Controls

Power, Gain A, Gain B, Mic/Line, LF Mode (Ext Sub/Norm/DEEP™),

HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)

Indicators

Power, Signal A, Signal B, Standby, Limit, Mic

Connectors

Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector

Cooling

On demand, 50 mm variable speed fan

Amplifier Protection

Thermal limiting, output overcurrent, overtemperature muting, GuardRail™

Transducer Protection

Thermal limiting, excursion limiting

AC Power Input

Universal power supply 100–240 VAC, 50 to 60 Hz

AC Power Consumption
(1/8 of full power)

100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A

Enclosure

Material

Impact resistant ABS

Finish

Black paint

Grille

Rugged powder-coated steel

Dimensions (HWD) inches

20.4 × 12.6 × 11.8

Dimensions (HWD) mm

519 x 320 x 300

Weight (Net)

32 lb / 14.5 kg

Available Accessories

K10 Tote, K10 Yoke, M10 Kit-C
