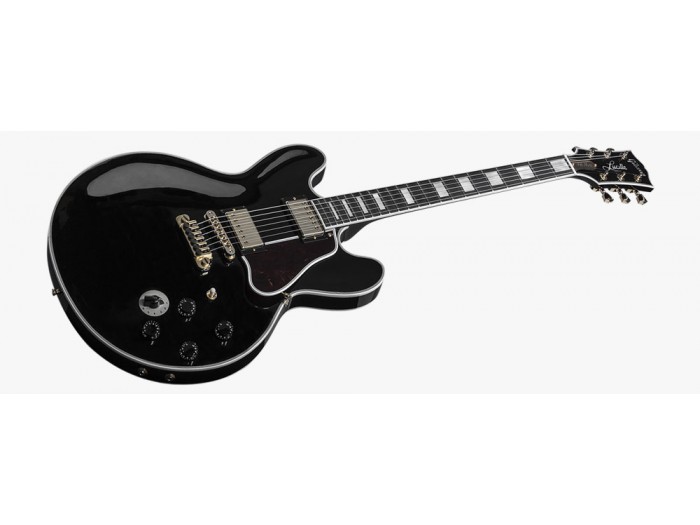

Gibson Legacy B.B. King Lucille Ebony

Gibson Legacy B.B. King Lucille Ebony
[klikni na sliku za uvećan prikaz]
Ovaj proizvod trenutno nije dostupan.

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

Adapted from the ES-355 to B.B. King's own specs, with superb dual-humbucker tone, top without f-holes, efficient fine tuning tailpiece, and top-of-the-line look.

Karakteristike:

Body

Top

Wood Species:  Maple, Poplar, Maple

Pieces:  3-Ply

Grade:  Plain

Binding:                7-Ply (W-B-W-B-W-B-W)

Back

Wood Species:  Maple, Poplar, Maple

Pieces:  3-Ply

Density:               Plain

Binding:                3-Ply (W-B-W)

Rims

Species Wood:  Maple, Poplar, Maple

Pieces:  3-Ply

Grade:  Plain

Weight

Average Weight (body only):      2.3541 kg / 5.190 lbs

Materials Used

Glue:     Franklin Titebond 50

Tonal, Resonant, and/or Technical Effect:             The soundwaves resonate within the hollow airspace of the Maple veneered Body and throughout the solid glue joints.

Body Contour

Carve:   ES (Semi-Hollow without F-Holes)

Neck

Wood Species:  Maple

Pieces:  3

Details

Truss Rod:           Adjustable

Profile: Traditional C

Thickness at Fret 1:         20.828 mm / .820"

Thickness at Fret 12:       24.384 mm / .960"

Other Materials:               Franklin Titebond 50

Average Weight:              566.9905 gm / 1.250 lbs

Peg Head

Type:     SP-2

Inlay:     Mother of Pearl "Lucille"

Peg Head Binding:           5-Ply (W-B-W-B-W)

Logo:     Mother of Pearl "Gibson"

Headstock Angle:             17 degrees

Tonal, Resonant, and/or Technical Effect:             The wood, construction, and headstock pitch all contribute greatly to the tone, aiding this guitar's exceptional sustain and depth, and yielding a resonance that can be felt right through the body

Neck Fit

Joint Angle:        4 degrees

Joint Angle Tolerance:   0 deg 0 min 15 sec

Type:     Mortise and Tenon

Adhesive:            Franklin Titebond 50

Gauges Used:

Pitch Height Gauge, Alignment Gauge

Nut

Style:     White

Material:              Corian

Width:  4.2697 cm / 1.681"

Slots:

E: 1.2268 mm / 0.0483 inches

A: 0.9601 mm / 0.0378 inches

D: 0.6934 mm / 0.0273 inches

G: 0.4534 mm / 0.01785 inches

B: 0.3467 mm / 0.01365 inches

e: 0.2667 mm / 0.0105 inches

Fingerboard

Wood Species:  Richlite

Pieces:  1

Shade:  Dark

Fingerboard Details

Radius: 30.48 cm / 12 "

Frets:    22

Nut/End of Board:           4.2697 cm / 1.681" @ nut, 5.6896 cm / 2.240" @ end of board

Scale:    62.865 cm / 24.75"

Binding:                White

Side Dots (Color):             Black

Fingerboard Inlays

Style:     Full Block

Material:              Mother of Pearl

Dimensions:       22.479 mm x 27.6352 mm / 0.885" x 1.088"

Average Weight:              136.0777 gm / 4.800 oz

Finishes

Ebony

Color Code:        EB

Surface Texture:              Smooth/ Hi Gloss 90 Sheen Lacquer

Filler:     Walnut

Sealer:  1-1.5 mils

Top:       Ebony

Top Coat:             Hi Gloss Lacquer/ 90 Sheen 7-8 mils

Scraped:              Fingerboard Sides, Body and Nut

Electronics

Pickups Rhythm                                Lead

Style:     490R                      490T

Winds/Coil: Screw side/Slug side:             5250                       5250

Material of Wire (gauge):             Enamel (42)                        Enamel (42)

Coil Dimensions (per coil):            6.6294 cm x 1.7272 cm / 2.61" x 0.68 "                      6.6294 cm x 1.7272 cm / 2.61" x 0.68 "

Coil Material:     Lacquer coated copper                  Lacquer coated copper

Coil Winding Process:     Machine Wound                              Machine Wound

Pole Piece Material:        Nickel                    Nickel

Pole Piece Position from Nut:     47.3075 cm / 18.625"                       59.52998 cm / 23.437 inches

Slug Material:    Nickel                    Nickel

Slug Dimensions (diameter x length):     4.7495 mm x 1.24206 cm / 0.187" x 0.489"                              4.7495 mm x 1.24206 cm / 0.187" x 0.489"

Magnet Material:             Alnico II                                Alnico II

Magnet Position from Nut:          48.26 cm / 19 "                   58.7375cm / 23.125 "

Magnet Dimensions:      6.35 cm x 1.27 mm / 2.5" x 0.5"                   6.35 cm x 1.27 mm / 2.5" x 0.5"

Polarities:            Screw side is the south pole of magnet                  Screw side is the south pole of magnet

Cover:   Gold plated

Qfactor:               5.62                        5.62

ResistanceDC:   7.80k ohms                         7.80k ohms

Resonant Frequency:     2715.71 Hz                           2715.71 Hz

Tonal & Resonant Advancements:

Slightly overwound to give a traditional Humbucker tone with a touch of modern edge

Control Pocket Assembly             Volume

Type:     CTS 500K Linear

Peak Voltage:    1080V

Range:  0-500K

Power Rating:    1/4 watt above 100K ohms

Resistance Tolerance:    500K +/- 20%

Minimum Resistance:    100 ohms

                Tone      VariTone

Type:     CTS 500K Audio CTS DP6T

Peak Voltage:    1080V    250V

Range:  0-500K

Power Rating:    1/4 watt above 100K ohms          3/4 amp at 125 VAC

Resistance Tolerance:    500K +/- 20%

Minimum Resistance:    100 ohms             .015 ohms

Capacitors:          Lead Value          Rhythm Value

                .022mf  .022mF

Hardware

Tuning Keys

Style:     Grover Tulip 102GKM

Material:              Die cast alloy

Weight:                43.0913 gm / 1.52 oz

Tuning Keys Details

Tuning Ratio:      14:1

Gear Type:          Syncronized spur gear system

What is allowable turn:  +/- 4 degrees

Plating specs:     Gold

Part numbers:   430-14168 / 430-14169

String Dimensions

E:            1.1684mm / 0.046"

A:            0.9144 mm / 0.036"

D:            0.6604 mm / 0.026"

G:           0.4318mm / 0.017"

B:            0.3302mm / 0.013"

e:            0.2540mm / 0.010"

Bridge

Style:     Tune-O-Matic

Material:              Die cast alloy

Plating Specs:    Gold

Part number:     430-10123

Weight:                61.235 gm / 2.16 oz

Dimensions of String Slots

E:            1.2268 mm / 0.0483 inches

A:            0.9601 mm / 0.0378 inches

D:            0.6934 mm / 0.0273 inches

G:           0.4534 mm / 0.01785 inches

B:            0.3467 mm / 0.01365 inches

e:            0.2667 mm / 0.0105 inches

Tailpiece

Style:     TP-6

Compensated:  No

Material:              Die Cast Zinc

Plating Specs:    Gold

Part number:     430-11183

Weight:                113.3981 gm / 4.0 oz

Output Jack

Style:     1/4" mono with dual tip contact (both pickups)



Strap Buttons

Material:              Brass

Part numbers:   430-19521

Weight:                2.268 gm / 0.080 oz

Plastics

Truss Rod Cover

Style:

Gold engraved "B.B. King"

Part Number:    430-19645

Knobs

Style:     Black Speed Kobs

Part Number:    430-19267

Dial Pointers

Yes/No:                No

Control Plate(s) (Backplate Cover)

Style:

Black Plastic

Part Number:    380-1228

Switch Washer

Style:     Gold Varitone

Part Number:    430-19302

Trim Rings

Style:     Black

Part Number:    440-13850

Accessories

Case

Style:     Hard Shell

Color:    Black

Strap Locks:        No

COA/Other:        Gibson Memphis COA
