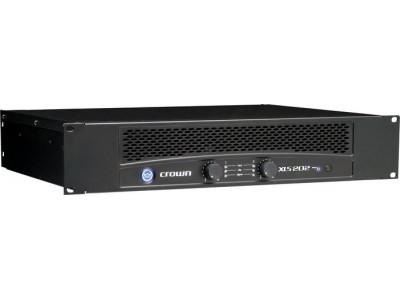

330W/ch @ 2 ohms, 300W/ch @ 4 ohms, 200W/ch @ 8 ohms, 660W bridged mono @ 4 ohms, 600W bridged mono @ 8 ohms. Designed to provide the quality, power, and reliability you expect from other Crown amps with many of the same controls and features for a much friendlier price.
Features sophisticated protection circuitry (from shorted, open, or mismatched loads, input and high frequency overloads), 5-way fault indicator, red LED on each channel that turns on when distortion becomes audible, green signal-present LED that flashes when the level is extremely low (indicating cabling problems), and detented level controls. Mode select switch for stereo or bridged; 3-speed fan; and XLR inputs and Speakon or binding post outputs; all in a rugged steel chassis designed to handle serious road use.
Features sophisticated protection circuitry
5-way fault indicator
Red peak clip LED on each channel
Green signal-present LED that flashes when the level is extremely low
Detented level controls
Mode select switch for stereo or bridged
3-speed fan
XLR inputs; touch-proof binding post and Speakon outputs
Rugged steel chassis designed to handle serious road use.
3-year no-fault warranty
Performance
Sensitivity (volts RMS) for full rated power at
4 ohms: 1.25V
Frequency Response (at 1 watt) 22 Hz to 20 kHz: +0 dB, —0.8 dB
Signal-to-Noise Ratio (20Hz-20kHz)
A-weighted, below rated power: > 98dB
No weighting, below rated power: > 93dB
Total Harmonic Distortion (THD): < 0.5%
Intermodulation Distortion (IMD): (60Hz and 7kHz at 4:1) from full rated output
to —40dB: < 0.3%
Damping Factor (8 ohm) 10Hz to 400Hz: >200
Crosstalk (below rated power): at 1 kHz: —76 dB - at 20 kHz: —58 dB
Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced
Load Impedance: Rated for 4 to 8 ohms per channel in Stereo, 8 ohms in Bridge Mono
AC Line Voltage and Frequency Configurations: Available (±10%): 120 VAC 60 Hz, 100 VAC 50/60 Hz, 220 VAC 50 Hz, and 230-240 VAC Mode Switch
Backpanel switch selects Dual or Bridge-Mono mode
Indicators
Signal Presence Indicators: Two green LEDs
