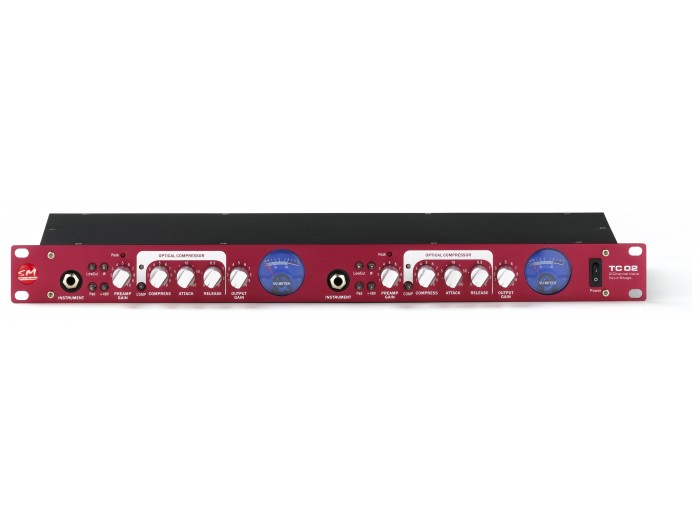

Our TC02 unites both the warmth of tube preamplification with the silky smooth compression that only an optical compressor can deliver.
The TC02 is an adjustable two-channel CLASS A tube preamplifier featuring selectable phantom power, phase reversal, and -20 dB PAD all in a standard 19" rack format. Perfect as a high-quality microphone or instrument preamplifier, the TC02 can also be used as a hi-quality dual DI unit.
Hand tested 12AX7 Tube
Saturation: 10% @ 30 dB
CLASS A Transformless high voltage signal path
Input impedance: XLR: 5 kOhm, 6.3 mm of handle: 1 mega ohm
Switchable Phantom Power
Output impedance: XLR: 51 ohms, 6.3 mm of handle: 51 ohms
Switchable Phase Reversal
Level display: Volume meter -20 dBu to +3 dBu
Adjustable optical compressor
110 V - 220 V external power pack
Input gain control
Size: 9,5"
Switchable -20 dB Pad
Housing: Metal
THD + noise (unweighted): 0.05%
