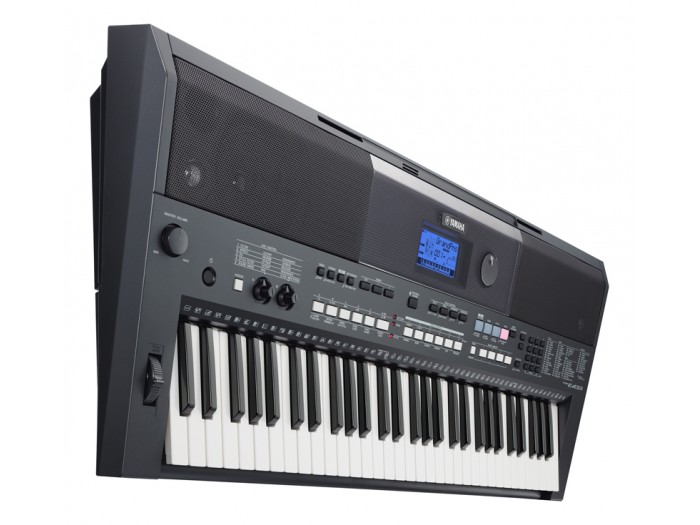

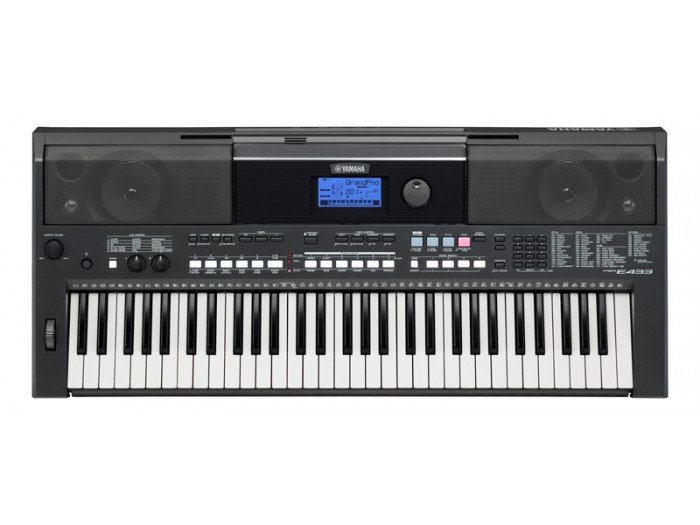

Yamaha PSR-E433

The PATTERN function puts a wealth of powerful loops and beats at your fingertips to instantly create dynamically varied music on the fly, like a DJ, tweaking the Live Control Knobs for even more sound variation.

Two real-time control knobs let you filter and adjust your sound just like an analog synthesizer. The Pitch Bend wheel adjusts the pitch of the sound bringing Voices like the Sax and Trumpet to life.

The PSR-E433 includes 731 high quality Voices, ranging from acoustic to electric instruments, featuring 5 Sweet! Voices and 3 Cool! Voices which use Yamaha’s renowned advanced Voice technologies. The sound is given the final boost by the built-in 2-way speaker system with bass enhancement.

Mexican, Arabic, Indian, Brazilian and Chinese content has been added to Styles for performing just about any type of music with an automatic backing. With these high-quality Styles, you'll sound like you have a professional backing band behind you.

Tap into instant inspiration with the Arpeggio function which has been improved for smoother playability. Hold Mode and allocated key-range free your hands to add more music. The 150 Arpeggio patterns adjust and morph around the notes and chords you play on the keyboard allowing for almost limitless creativity.

Get off to a flying start – choose a song and the Music Database automatically selects the best accompaniment and Voices for you to start playing immediately.

Yamaha Education Suite (Y.E.S.) is an advanced set of helpful learning tools built into the instrument, letting you teach yourself how to play and perform regardless of your ability. Choose from step-by-step lessons for left, right, or both hands. Y.E.S. helps you master a song with ease.

A great sounding Piano is only one button push away. Touch the Portable Grand button and everything is switched off leaving you with a stunningly rich and authentic piano tone.

Insert a USB flash memory in the USB TO DEVICE terminal on the instrument. It lets you load and save your settings songs, as well as transfer data from the connected devices such as a PC.

You can play along with your favorites transferred from a PC.

Body Color Black

Size/Weight

Dimensions Width 946mm (37-1/4")

Height 140mm (5-1/2")

Depth 402mm (15-13/16")

Weight Weight 6.8kg (15lbs 0oz.)not including batteries

Control Interface

Keyboard Number of Keys 61

Type Organ Style

Touch Response Yes

Other Controllers Pitch Bend Yes

Control Knobs Yes

Display Type Custom LCD

Size 92mm x 42mm

Backlight Yes

Language English

Panel Language English

Voices

Tone Generation Tone Generating Technology AWM Stereo Sampling

Polyphony Number of Polyphony (Max.) 32

Preset Number of Voices 206 + 462 XGlite + 23 Drum/SFX Kits + 40 Arpeggio

Featured Voices 5 Sweet! Voices, 3 Cool! Voices, 3 Dynamic Voice

Compatibility GM Yes

XGlite Yes

Effects

Types Reverb 9 types

Chorus 4 types

Master EQ 5 types

Harmony 26 types

Ultra-Wide Stereo 3 types

Functions Dual/Layers Yes

Split Yes

Arpeggio 150 types

Accompaniment Styles

Preset Number of Preset Styles 186

Fingering Multi

Style Control ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF

Custom User Styles Style File Format

Other Features Easy Song Arranger No

Music Database 305

One Touch Setting (OTS) Yes

Songs

Preset Number of Preset Songs 100

Recording Number of Songs 10

Number of Tracks 6 (5 Melody + 1 Style/Pattern)

Data Capacity Approx. 19,000 notes/10 songs (when only "melody" tracks are recorded)Approx. 5,500 chords/10 songs (when only "chord" tracks are recorded)

Recording Function Yes

Compatible Data Format Playback SMF

Recording Original File Format (SMF conversion function)

Functions

Registration Number of Buttons 4 ( x 8 banks )

Lesson/Guide Yamaha Education Suite (Y.E.S.) Listening, Timing, Waiting, Repeat & Learn, Chord Dictionary

Overall Controls Metronome Yes

Tempo Range 11 - 280

Transpose -12 to 0, 0 to +12

Tuning 427.0 - 440.0 - 453.0 Hz

Miscellaneous PIANO Button Portable Grand Button

Sleep Mode Yes

Storage and Connectivity

Storage Internal Memory 1.54MB

External Drives Optional USB Flash Memory

Connectivity DC IN DC IN 12V

Headphones x 1/ OUTPUT

Sustain Pedal Yes

USB TO DEVICE Yes

USB TO HOST Yes

Amplifiers and Speakers

Amplifiers 2.5W + 2.5W

Speakers 12cm x 2 + 3cm x 2

Power Supply

Power Supply Adaptor (PA-150/PA-150A/5D), or batteries (Six "AA" size alkaline (LR&), manganes (R6) or Ni-MH rechargable batteries)

Power Consumption 16W

Auto Power Off Function Yes

Accessories

Included Accessories Music Rest Yes

Song Book Download from PC
