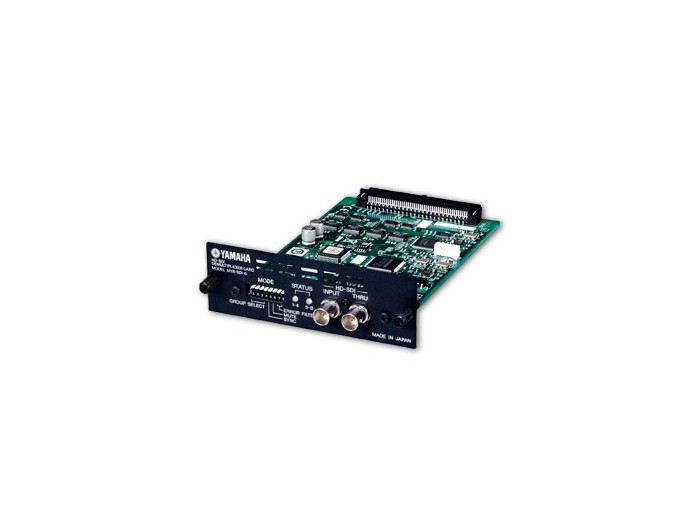

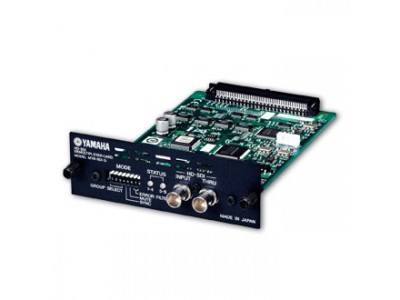

SDI Interface Cards
- HD-SDI de-embed card
- Capable to de-embed two of the 4 audio groups out of an HD-SDI signal to the console
- 2x BNC Connectors for HD-SDI input and thru
- Compatible format: 720p: 50/59.94/60; 1080i: 50/59.94/60; 1080p: 25/29.97/30/24/23.976; 1080sF: 24/23.976; 1035: 59.94/60
- 1 x HD-SDI input, 1 x thru-output (non-reclocked)
- Group selection allows demultiplexing of two 4-channel embedded audio groups
- Switchable audio synchronization mode: sync with embedded audio or video signals
- Embedded audio status display
