Sennheiser SK 500-G2-C **

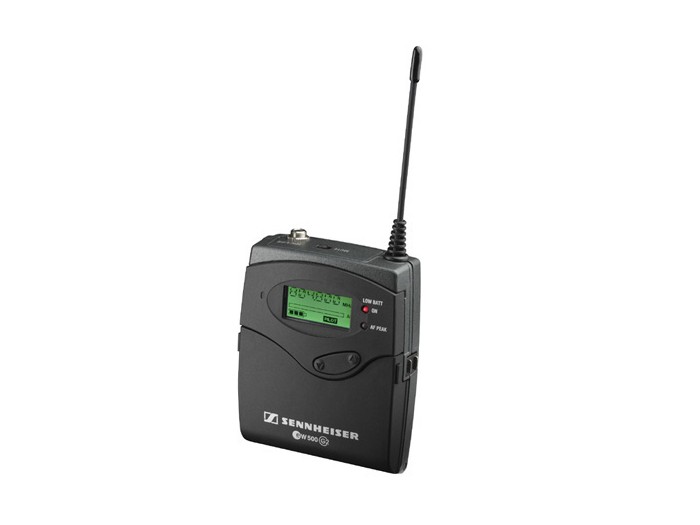

The Sennheiser SK 500 G2 bodypack transmitter has been designed for professional applications and is extremely compact. It is an ideal match for the EM 550 G2 Rack-mount receiver or the EK 500 G2 Portable camera receiver components. It represents great flexibility as it can be used with Sennheiser Evolution series compatible microphones and any instruments with a 1/4 inch jack socket, for example guitars (using optional CI 1-N cable).

The transmitter features nine frequency banks with up to 20 directly accessible presets each, ready for immediate use.

A great feature of the Evolution range is the ability to expand the systems uses and power. There are many additional microphones, bodypack cable convertors and signal boosters available for you to get the right microphone with the right power for your performance.

Importantly, this UHF transmitter uses band E: Range 830 - 866 MHz, so you will always have a frequency available throughout Europe (except Greece) without requiring any licence.

• 1440 tunable UHF frequencies for interference-free reception
• Absolutely reliable transmission and extended range due to high RF output power
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Rugged metal housing
• Contacts for recharging the BA 2015 rechargeable accupack directly in the transmitter
• Backlit display (lights up when a button is pushed)
• Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• 4-step battery status display, also transmitted to receiver
• Mute function
• Wide range of accessories adapts the transmitter to any requirement e.g. Microphones, Headphones, Installed Sound, Aviation, Audiology, Call Centres
• SK 500 G2 bodypack transmitter, protective pouch, 2 x batteries and Operating instructions included with this product

• RF frequency Range E: 830 - 866 MHz. Frequencies between 863 to 865 MHz (ISM) are an ETS agreed licence exempt band. Use of any other frequency is likely to require a licence (country dependant)
• Transmission/receiving frequencies: 1440 (max. 20 Presets)
• Switching bandwidth: 36 MHz
• Peak deviation: +/- 48 kHz
• Compander: HDX
• Frequency response (microphone): 40 - 18000 Hz
• Signal-to-noise ratio: 115 dB(A)
• THD, total harmonic distortion: 0.9 %
• In compliance with ETS 300422 , ETS 300445 , CE , FCC
• Audio connector: 3.5 mm jack
• Power supply: 2 x 1.5 V (AA)
• RF output power: 30 mW
• Operating time (transmitter): 8 h
• Input voltage range mic: 1.8 V
• Input voltage range line: 2.4 V
• Dimensions (Transmitter): 82 x 64 x 24 mm
• Weight (Transmitter): 158 g
