Instantno pretvorite gitaru, bas, klavijature ili vokal u pulsirajući groove instrument. Izaberite jedan od 50 integrisanih Slice paterna ili eksperimentišite sa inovativnom Harmonic Slicer opcijom koja generiše perkusivne melodije, Loop snimanje i unikatni 3D panning.
Groove and Melody Maker

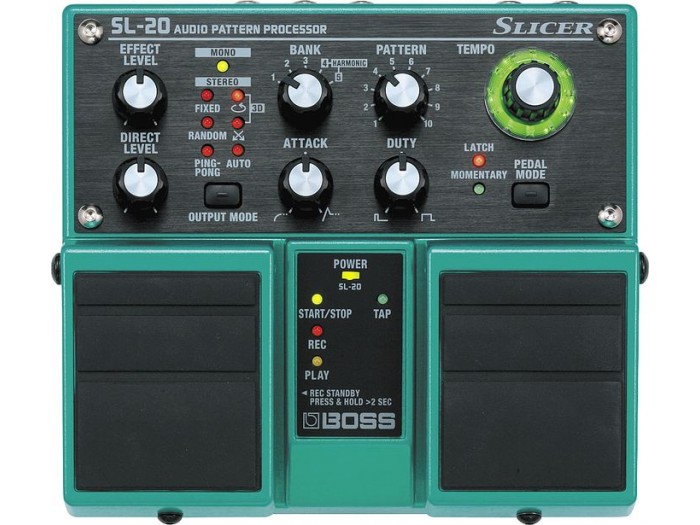

SL-20 pretvara vašu muziku u perkusivni groove. Pedeset ritmičkih šablona je integrisano sa podesivom dužinom nota plus neverovatni Harmonic Slice efekti. Napravite energične paterne na bini u realnom vremenu, ili koristite SL-20 kao alat za snimanje i pisanje pesama. Svirajte Slie-ovane zvuke u realnom vremenu dok ih snimate Loop Record opcijom.
Flexibile Control
Unutrašnja Tap Tempo karakteristika je uključena kao i mogućnost sinhronizovanja sa eksternim MIDI clock-om. SL-20 karakteristike zvuka kao što su Attack, Duration, Effect Level, i Direct Level se mogu kontrolisati ugrađenim knob-ovima ili putem expression pedale.
Generator perkusivnih melodija i instant groove-a
50 integrisanih Slice šablona, uključujući i Harmonic Slice
Tap Tempo preko ugrađenog prekidača; unutrašnja i MIDI sinhronizacija
Mogućnost kontrole zvučnih karakteristika putem Expression pedale (prodaje se odvojeno)
Raznovrsnost izlaznih modova
Nominal Input Level: -20 dBu
Input Impedance: 1 Mohm
Nominal Output Level: -20 dBu
Output Impedance: 1 kohm
Recommended Load Impedance: m10 kohms or greater
Tempo: Quarter note 30 to 250 bpm
Maximum recording time: 40 sec.
Controls: START/STOP, REC, PLAY pedal, TAP pedal, EFFECT LEVEL knob, DIRECT LEVEL knob, BANK knob, PATTERN knob, ATTACK knob, DUTY knob, TEMPO knob, OUTPUT MODE button, PEDAL MODE button
Indicator: MONO, FIXED, RANDOM, PING-PONG, AUTO, 3D PANNNER, 3D CROSS, LATCH, MOMENTARY, TEMPO, START/STOP, REC, PLAY, TAP, POWER
Connectors: INPUT jacks R/MONO, L (1/4 inch phone type), OUTPUT jacks R/MONO, L (1/4 inch phone type), EXP PEDAL jack (1/4 inch TRS phone type), MIDI IN connector, AC adaptor jack
Power Supply: DC 9 V, Dry battery LR6/R6 (AA) type x 6/AC Adaptor (PSA-series: optional) *1
Current Draw: 110 mA
Accessories: Owner's Manual, Leaflets ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Dry battery (R6 (AA) type (carbon) x 6) *2
Options: AC adaptor (PSA-series), Expression pedal (Roland EV-5, FV500L)
Size and Weight
Width: 173 mm (6-13/16 inches)
Depth: 158 mm (6-1/4 inches)
Height: 57 mm (2-1/4 inches)
Weight: 1.1 kg (2 lbs. 7 oz.) Including battery
* 0 dBu = 0.775 Vrms
*1 Expected battery life under continuous use: 7 hours (Carbon), 18 hours (Alkaline). These figures will vary depending on the actual conditions of use.
*2 The battery that was supplied with the unit is for temporary use-intended primarily for testing its operation. We also suggest replacing this with an alkaline dry cell.
